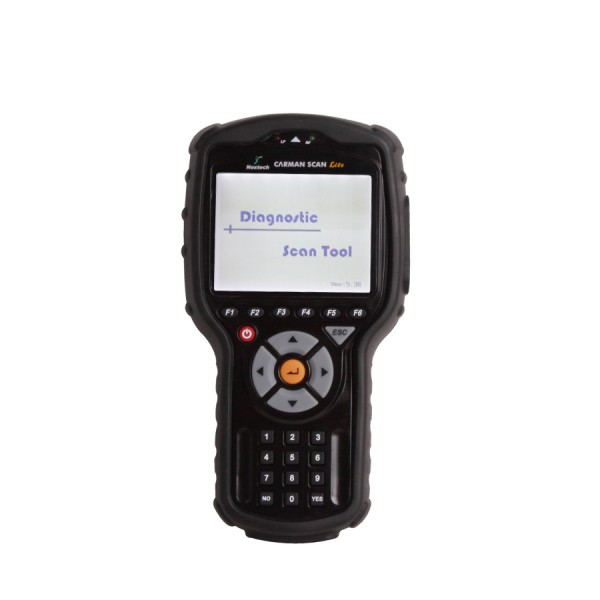

Carman Scan Lite Carman Scan Light designed as a compact, robust tool for use in the workshop.
1.Compare to other low price scan tool, all the functions that Carman Scan II provides to the mechanics up dated information with OBD-1 level diagnosis functions.
2.Diagnostic communication with Japanese, European, U. S. A. vehicles
3.Diagnostic communication with all Hyundai and Kia electronic control systems

We design the SDK (Software Development Kit) for overseas business partnersdevelopment. Without deep knowledge of our hardware and software logic, most of foreign engineers can integrate their having ECU data and develop new scan test software easily.

Features:

ISO 9141-2, ISO-14230,

SAE J1850 (PWM, VPW) ,

KWP2000

CAN BUS Communication support

Korean, Japanese, European, American cars

Malaysian, Chinese, Australian and Latin American locals

Fast update via USB terminal

LED indication of communication status: Tx / Rx

Main Memory: 32MB built-in (Extended up to 128MB)

No external memory is required

Enough to contain extensive supplements

Provision of Open Platform Hardware

Provision of Software after the SDK development

Development of programming and coding tools

Enables faster development by multiple groups

On board diagnostic communication

Special vehicle test emulation

The combination provides for easy and comprehensive diagnosis of the electronically

Controlled systems used across the aftermarket model range.

OBD-II communication protocol support

Actuator driving function with predefined frequency and duty ratio

High resolution LCD display

Easy and soft touch key

Visual lamp of communication state

Bright screen (Auto backlight)

available in english and French languages.

On-line support for diagnostic trouble code or current data operations

On-line"HELP"key operating support

Built-in main memory (32MB)

Secondary large memory card for s / w update and information storage

PC communication facility

USB support (PC connection etc.)

Compact design

Easy to carry

Case

Bright blue color

High strength ABS material

LCD spec

320 by 240 resolution

EL backlight (Blue green)

Standard character output: 40 columns 12 lines

Keypad

Power ON / OFF key

Soft functional 6 keys

Arrow 4 keys

Enter and ESC each 1 key

Type: soft touch keypad

Memory capacity

Operationg voltage

8 ~ 36 VDC input

Operating temperature

0~ 50

DLC communication part

The following protocols can be implemented for applications,

Hyundai and kia vehicle all system

Korea domestic vehicle all system

OBD-II (ISO 9142-2)

OBD-II (SAE-J1850 VPW, PWM)

KWP-2000

CAN

SAE-J1587 for commercial vehicle

Simulator

Vehicle speed (Reed signal) sensor

Actuator driving

Maximum 1A short to ground
