Auxiliary Heater Diagnostic Unit for Eberspacher 12V/24V Systems

Auxiliary Heater Diagnostic Unit Function:

Read out errors from the control box
Perform diagnosis on installed heater
Switch on heater directly at the PC
Visual functional sequence
Display operating status and measured values
Detect the heater‘s fitness for altitudes
Display heater data

Auxiliary Heater Diagnostic Unit Applied for Following Heaters:

D1L C
D1L C Compact
B1L C Compact
D3L C
D3L C Compact
B3L C Compact
D3L P
D5L C
D8L C
Airtronic D2
Airtronic D4
Airtronic D4S
Airtronic D5
Hydronic D3W
Hydronic D4W
Hydronic D5W
Hydronic M
Hydronic M-II
Hydronic L
Hydronic L-II

Wiring Instruction:

This device need wiring manually, find diagnostic wire in car for auxiliary heater and connect it to adapter pin 7, and apply power to obd diagnostic pin 5=0V and pin 16 = 12/24V and turn on the aux heater.
We provide wiring manual by CD or email.

Package including:

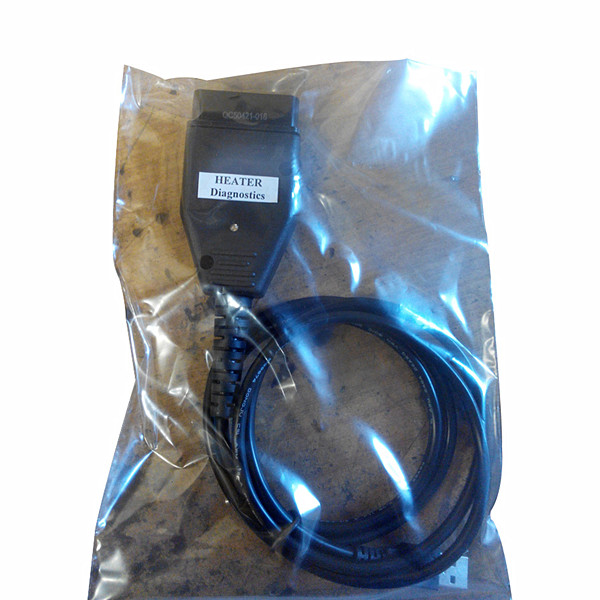

1pc x Auxiliary Heater Diagnostic Unit
