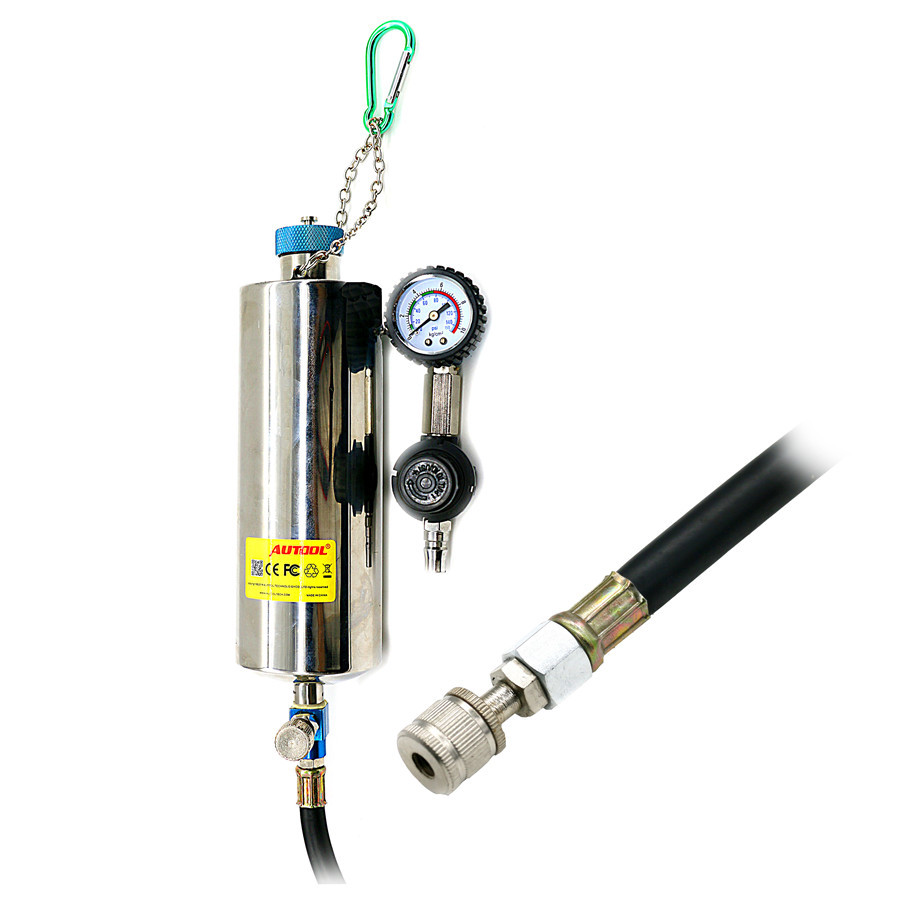

AUTOOL C100 Automotive Non-Dismantle Fuel System Injector Cleaner for Petrol EFI Throttle

Notice: Clean liquid not include.
Fit for gasoline injector,not for diesel injector!


AUTOOL C100 injector clean kits include many different kinds of adapter, cover almost all the EU,Asia,USA cars and light trucks. Non-Dismantle injector Throttle and fuel system.
AUTOOL C100 system is characteristic of high and low pressure cleaning function, besides it has the function of the whole combustion chamber fuel system of several major functions: such as cleaning throttle valve and the fuel nozzle.

Check fuel injection model, throttle or EFI:
EFI Model :
1. Find out the fuel return hose, disconnect it and plug it with suitable adaptor;
2. Find out the fuel inlet hose, disconnect it and connect it with the outlet hose of the cleaner with proper adaptor;
3. Connect the outlet and return hose of the fuel tank, and open the tank cover; if there is not return hose, please move the fuse of the fuel pump so that the pump will not work;
4. Charge the cleaning fluid into the tank of the cleaner;
5. Connect the air source power to the air port of the cleaner, adjust its pressure 40-50PSI;
6. Check all connect point to make sure there is not leakage;
7. Start the engine to clean the fuel system.

To the Throttle Style:
To the throttle style system, the way of connection is the same, just adjust the pressure of the air source 1-5PSI.

The way to identify the inlet and return hose:
1. Generally speaking, inlet hose is bigger, return hose is samaller;
2. There is always a filter connected in the inlet hose side, and a buffer in the return side;
3. There is arrow on the hose to show the fuel flow direction.

NOTE:
To the throttle style system, the way of connection is the same, just adjust the pressure of the air source 1-5PSI

Specifications:
Pressure:0-140PSI
Weight :4kg
Tank:600ml
Fit for:USA EU Asia cars and light truck (petrol and diesel)

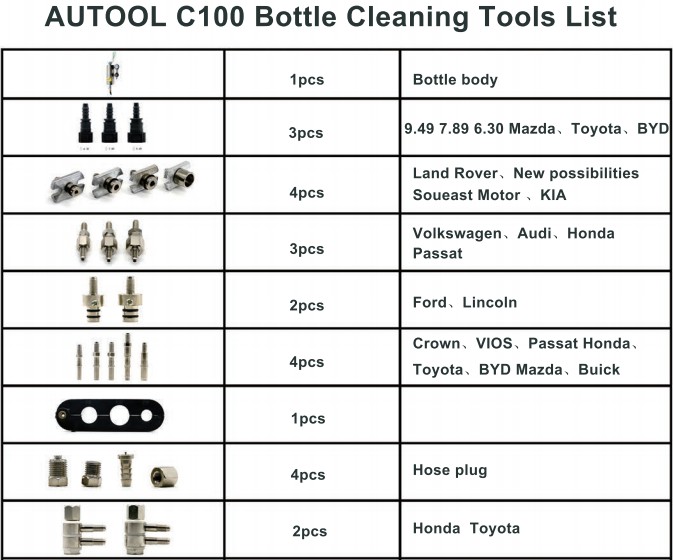

Package List:

1pc x Fuel Injector Cleaner
1pc x Adapter Kits
1pc x Suitcase
