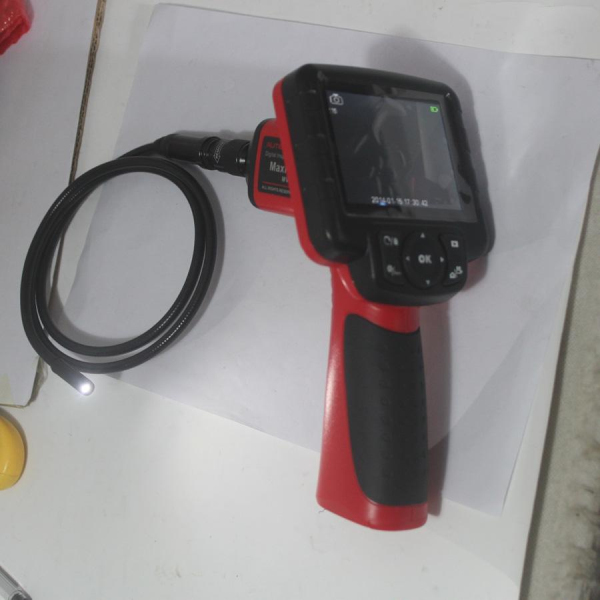

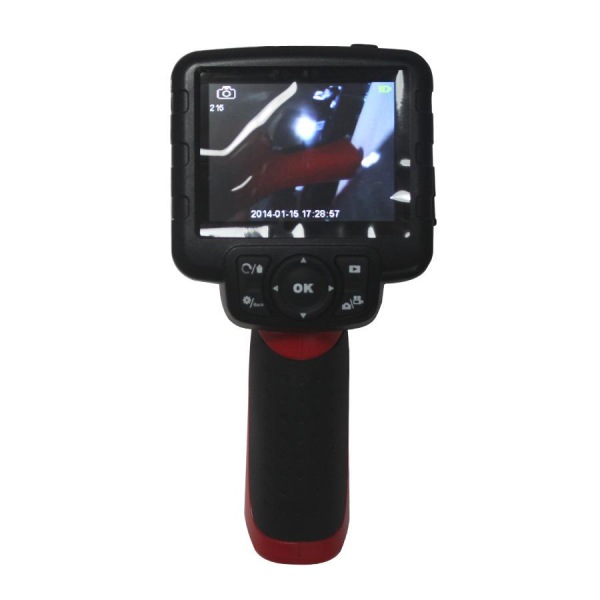

Original premier Autel MaxiVideo MV400 digital videoscope is an ideal tool for examining difficult-to-reach areas normally hidden from sight. It features the ability to record digital still images and MPEG2 or MPEG1 video either on its internal flash memory or on the removable SD cards (optional).

The MaxiVideo MV400 not only features a 3.5" full color LCD screen, auto focus and viewing capacity as close as 1" with crystal clear output, but also offers the capability to stream digital video directly to a PC. The multipurpose video scope is an economical solution to inspect machinery, facilities and infrastructure in the safest, quickest and most cost-effective manner possible.

Record and play back still images and video clips

3.5 " high resolution full color LCD display (320x240)

Easy-to-use, multi-language interface

Wide camera angle for in images with 640x480 resolution

With removable SD cards, save images and videos to take with anywhere

On-screen horizontal/vertical reverse

5x digital zoom for increased viewing

Mini USB connector for uploading images and videos to a computer

Probe diameter available in either 8.5mm(0.33") and fits most spark plug holes

White LED to illuminate the inspection area, with illumination control

View objects as close as 1"

Oil and scratch resistant tempered glass lens

1M (39.4") semi-rigid, but flexible watertight shaft

Built-in rechargeable Li-ion battery with up to 5-6 hours of continuous use.

Ergonomic and durable tool housing

One-year limited warranty

View objects as close as 1"

Powered by a Lithium-Ion battery with a battery life of up to 4hrs

Can operate the tool while charging the battery

Composite video output jack (RCA)

Recommended use: Indoor

Optimal viewing Distance: 1" to 14" (2.5cm to 35.6cm) with 8.5mm diameter imager head

Image capture: JPG images (640x480) AVI videos (320 x 240)

Screen type display: 3.5" TFT LCD

Display resolution: 320 x 240

Power supply: Built-in rechargeable lithium-ion battery pack (3.7V/1640 mAh)

Tested battery life: 3-4 hours of continuous use

Recording medium: Micro SD card (Micro SD card is optional and not included)

Imager head: 5.5mm (0.22")

Waterproof: Imager head and cable to 3m (10')

Additonal ports: USB, video out (TV-out) port

Operating temp.: Main unit: 32°F to 113°F (0°C to 45°C); Cable: 14°F to 176°F (-10°C to 80°C)

Storage temp.: -4°F to 158°F (-20°C to 70°C)

Video output: RCA

TV out: NTSC, PAL

MaxiVideo MV400 tool

User Manual

Blow molded Case

Imager head and cable (8.5mm)

Accessories- mirror, hook and magnet

USB Cable

Video-out cable

Charger
