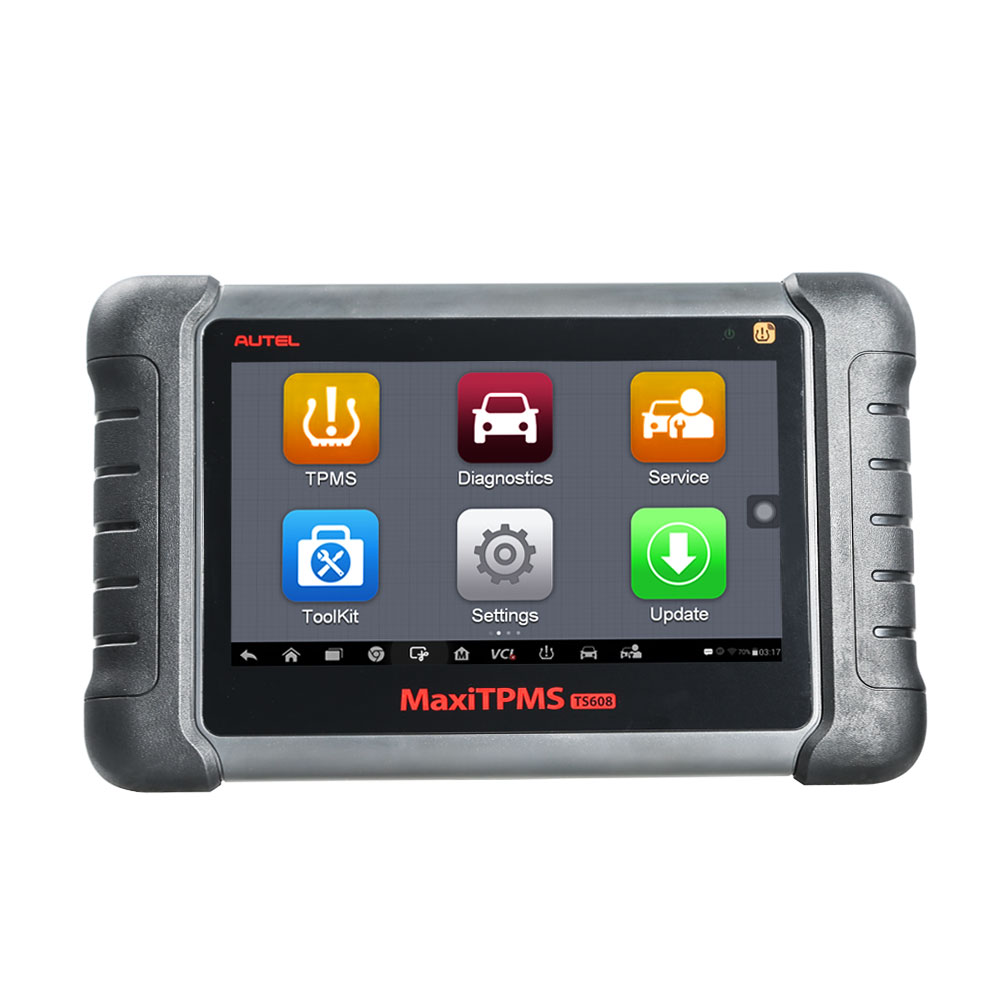

Autel MaxiTPMS TS608 Complete TPMS & Full-System Service Tablet Equals TS601+MD802+MaxiCheck Pro

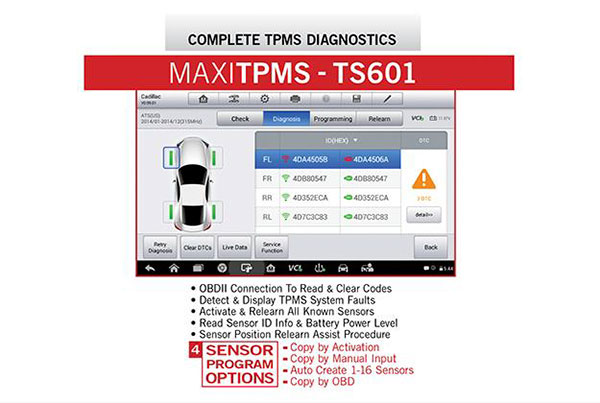

COMPLETE TPMS FUNCTIONS

1.Activate all known TPMS sensors and read sensor status;
2.Diagnose ECU for complete TPMS health check with DTC description;
3.Read DTCs from ECU and erase DTCs;
4.Program MX-Sensors by copying original sensor IDs or creating new IDs randomly;
5.On-tool relearn procedure and wide OBD relearn coverage;
6.Toolkit, special TPMS functions;

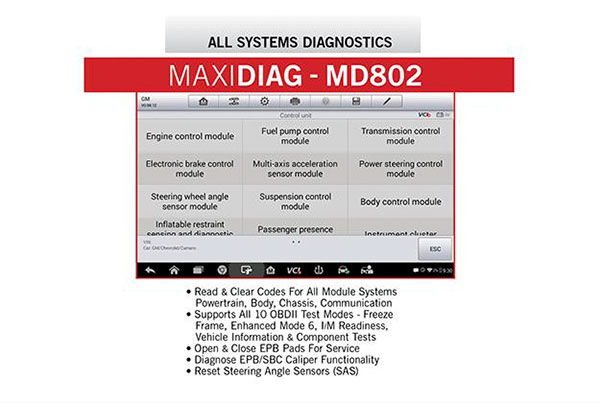

ALL SYSTEMS DIAGNOSTICS

1.Read/clear codes for all available electronic systems;
2.Turn off warning lights;
3.Display live data in text, graph & analog for easy data review;
4.Supports all 10 test modes of the latest J1979 OBD II test specs;
5.Enhanced OBDII Mode 6;

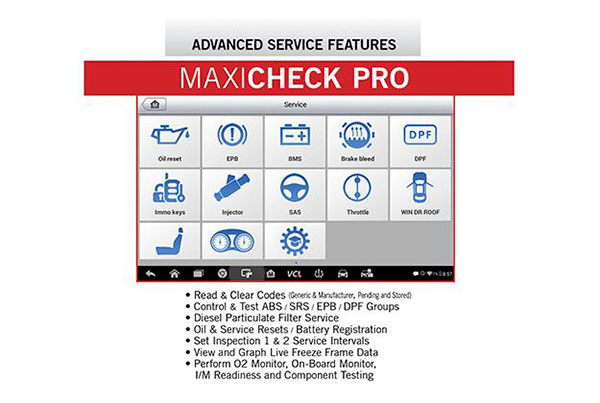

ADVANCED SERVICE FEATURES

1.Relearn parking brake pad after replacement;
2.Reset Steering Angle Sensor (SAS);
3.Reset service mileage and service intervals;
4.Forced regeneration and adjusting injectors;
5.Support battery registration and reset;
6.Support IMMO functions;

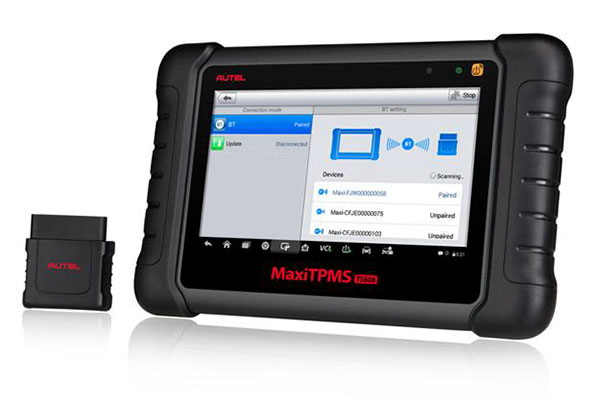

WIRELESS BLUETOOTH MAXI-VCI MINI

The latest compact size Wireless Bluetooth MaxiVCI Mini OBDII connector can transmit vehicle data to the tablet without a physical connection. Enhanced wireless bluetooth connectivity between the tablet and VCI device allows greater service mobility and easier TPMS sensor interaction while the tablet is still connected to the vehicle for data transmission.


Specifications

Recommended Use	Indoor
Operating System	Android™ 4.4.2, KitKat
Processor	Cortex-A9 processor (1.6 GHz)
Memory	1GB RAM DDR3 & 32GB ROM
Display	7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity	Mini USB 2.0;
	USB 2.0;
	Wi-Fi;
	HDMI Type A;
	Micro SD card slot (supports up to 32GB);
Sensors	Light sensor for brightness auto adjust
Audio input/output	Input: N/A;
	Output: Beep;
Power and Battery	3.7 V/5000 mAh lithium-polymer battery;
	Charges via 5 VDC power supply;
Tested Battery Life	Around 7 hours of continuous use
Battery Charging Input	5 V/1.5 A
Power Consumption	600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp.	-10 to 60°C(14 to 140°F)
Storage Temp.	-20 to 70°C (-4 to 158°F)
Operating Humidity	5% - 95% non-condensing
Dimensions (W x H x D)	270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Net Weight	885 g (2.31 lb.)
Protocols	ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code,
	SAE-J1850 VPW, SAE-J1850PWM,
	ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN),
	SAE J2610, GM UART,UART Echo Byte Protocol,
	Honda Diag-H Protocol, TP2.0, TP1.6

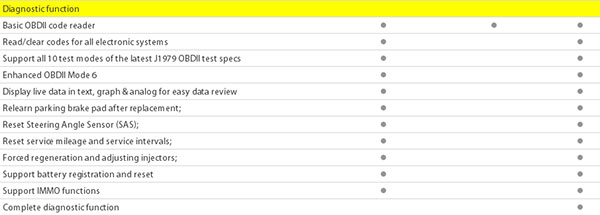

Autel MaxiTPMS TS608 Comparison Table:



Package includes:

1pc x MaxiVCI Mini
1pc x USB Cable (for test) and Magnet
1pc x USB Cable (for charging)
1pc x USB External Power Adapter
1pc x Hex Key
1pc x User Manual
1pc x Quick Reference Guide
