Large Image :Original Autel MaxiSys Mini MS905 Automotive Diagnostic and Analysis System Update Online

Original Autel MaxiSys Mini MS905 Automotive Diagnostic and Analysis System Update Online

The MaxiSys Mini MS905 is the ideal solution to manage your repair jobs in one mobile and smarter wireless tool.

The MaxiSys Mini MS905 is the ideal solution to manage your repair jobs in one mobile and smarter wireless tool. MaxiSys Mini MS905 has been developed for customers looking for a tool with ultra mobility and modern design while still delivering ultimate performance.

Autel MaxiSys Mini MS905 Automotive Diagnostic and Analysis System with LED Touch Display

Free Update Online for One Year, After One Year, It's 695USD Per Year

Autel MaxiSys Mini MS905 Features and Function:

Extraordinarily powerful Cortex-A9 quad-core processor

7.9” 1,024x768 LED-backlit glossy Multi Touch capacitive display with IPS technology

Internal reliable and fast 32GB Solid State Drive for better performance

Built-in 5-megapixel rear camera with autofocus and flashlight

Dual-band (2.4 GHz & 5.0 GHz) 802.11n Wi-Fi to access your favorite web resources

Unique shop tough ergonomic design features strong rubber protection and housing;

Built-in rechargeable lithium-ion battery for up to 5 hours of continuous operation

USB, audio and auxiliary ports make it easy to connect accessories

The VCI connects wirelessly to the main unit with Long-Range Class 1 Bluetooth

Autel MaxiSys Mini MS905 Software:

Open source Android Operating System for fast boot-up and multitasking

Easy and intuitive navigation makes finding what you need simple and fast

Extensive vehicle coverage for more than 80 vehicle makes from US, Asian and European

Complete capabilities for codes, live data, actuation tests, adaptations and ECU coding

Displays live data in text, graph, analog and digital gauge for easy data review and analysis

Configures display options, sets triggers, records and playbacks results with one touch

Records and playbacks live data to pinpoint troubles of sensors and components

Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Remote technical support for convenient demonstration, training and increased customer satisfaction

Prints out recorded data anytime and anywhere with Wi-Fi technology

Automatic Wi-Fi updates available in new software releases

Autel MaxiSys Mini MS905 Specification:

Operating System: AndroidTM 4.0, Ice Cream Sandwich

Processor: Samsung Exynos Quad-Core Processor 1.4GHz

Memory: 2GB RAM & 32GB On-board Memory

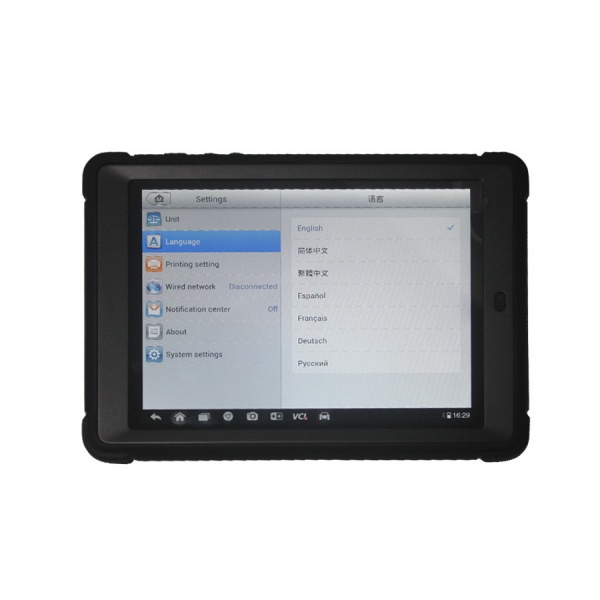

Display: 7.9” LED capacitive touch screen with 1024x768P resolution

Connectivity: Ethernet: RJ45 Ethernet Connection Cellular: 3G/4G module: WCDMA

Camera (rear): Rear-facing, 5.0 Mexgapixel, AF with Flashlight

Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output: Microphone, Dual Speakers, 4-Band 3.5 mm stereotype/standard headset jack

Power and Battery: 5000 mAh 3.7 V lithium-polymer battery, Charging via 12 V vehicle power

Input Voltage: 12 V (9-24 V)

Power Consumption: 3.9 W

Operating Temperature: -10 to 55 鈩?(14 to 131 鈩?

Storage Temperature: -20 to 70 鈩?(-4 to 158 鈩?

Housing: Strong plastic housing with protective rubber boot

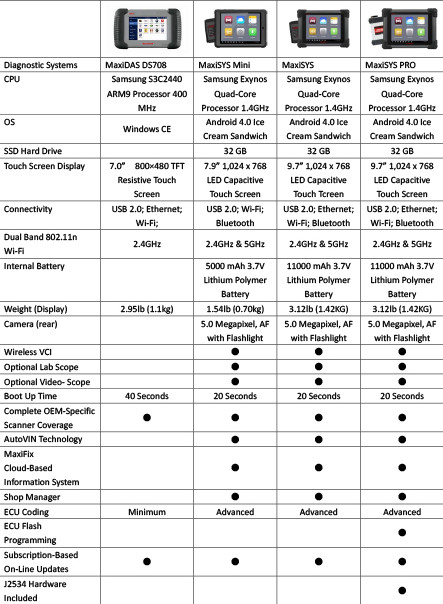

MaxiSYS Comparison:

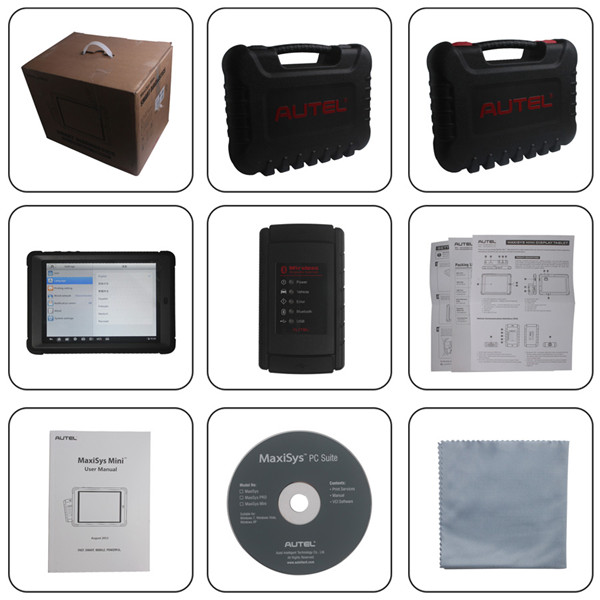

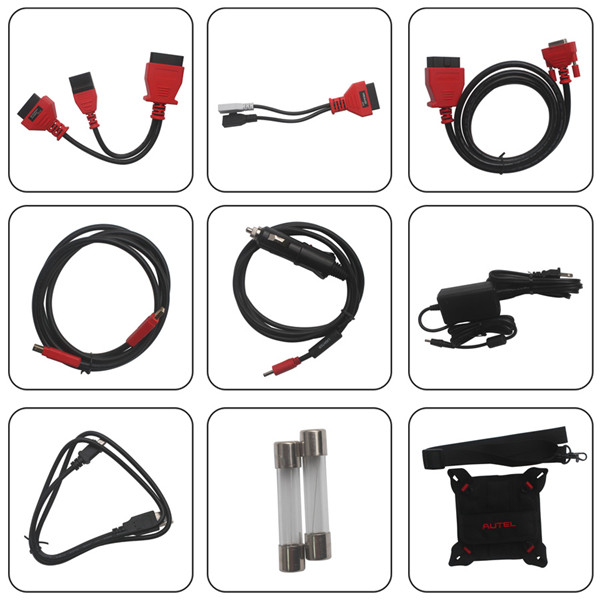

Autel MaxiSys Mini MS905 Package List:

1. Main part

MaxiSys Mini Main unit

MaxiSys Mini Case

Quick reference guide

Lighter Fuse

Main cable

Carry case

USB Cable

User’s Manual

Cigarette Lighter

Compact Disc (CD)

AC/DC External Power Adapter

Wireless Diagnostic Interface

Capacitive Stylus Pen

Soft Cloth

Packing List

Mini USB Cable

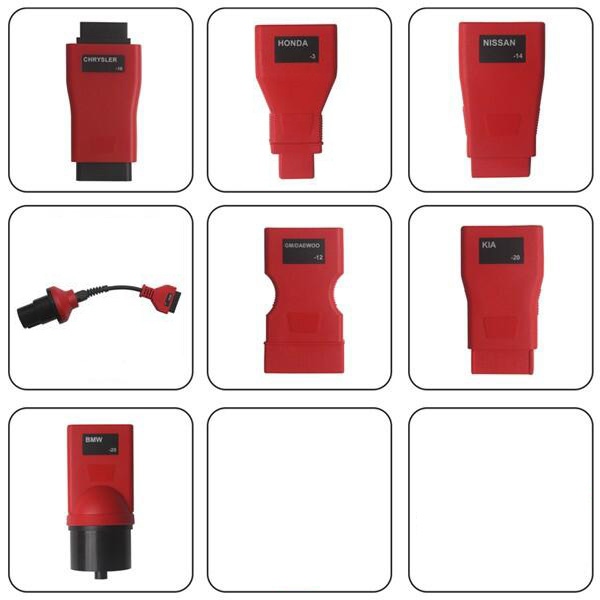

2. Adaptor

GM/Daewoo-12 adaptor

PSA-2 adaptor

Fiat-3 adaptor

Audi-2+2 adaptor

BMW-20 adaptor

Benz-38 adaptor

Kia-20 adaptor

Mitsubishi/Hyundai-12+16 adaptor

Nissan-14 adaptor

Honda-3 adaptor

Chrysler-16 adaptor

Benz-14 adaptor

FAQ:

Q: Which languages does MS905 support? Is there a user manual?
A: MS905 supports Multi-language and also it has a quick reference guide.
