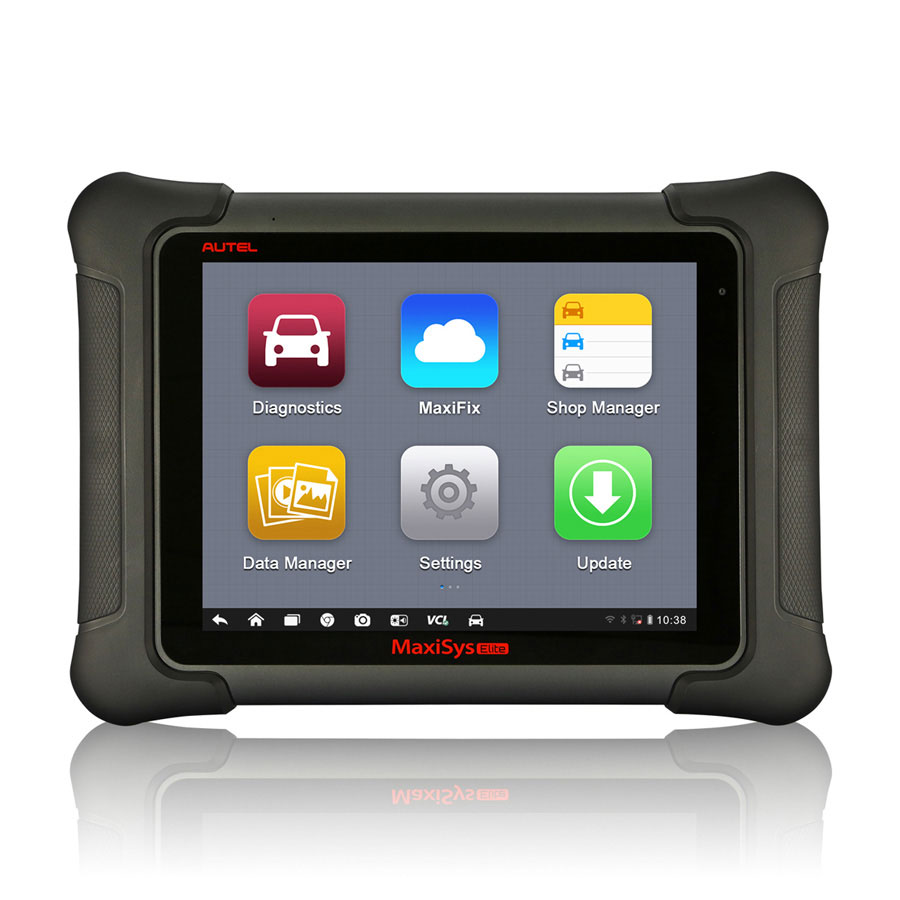

Original Autel MaxiSys Elite with Wifi/Bluetooth OBD Full Diagnostic Scanner with J2534 ECU Programming Free Update Online

The MaxiSys Elite rapidly performs every job from comprehensive vehicle diagnostics & analysis to advanced ECU programming. 2x faster than any comparable device, the MaxiSys Elite provides extended battery life and intelligent power saving. The MaxiSys Elite offers a super-sensitive capacitive screen able to respond to gloved, moistened, and even greasy fingers! The ergonomically angled docking station provides optimum visibility and convenient charging that eliminates power concerns.

Autel MaxiSYS Elite enables technicians to quickly access the Electronic Control Unit(ECU) and scan,diagnose and clear faults on the numerous system modules controlling almost every automotive make and modules controlling almost every automotive make and model on the road today.The MaxiSys Elite offers a super-sensitive capacitive screen able to respond togloved moistened,and even greasy fingers!
Shop Manager feature simplifies your record keeping and improves customer service by saving a detailed service and repair record of its customers and their vehicles.Shop Manager detailed service reports can be generated and wirelessly printed from the Elite tablet and given to the customer.This information also can be stored on the Elite and then instantly retrieved and reviewed the next time the vehicle is in for service.

MaxiFIX is another dynamic feature of the Elite.Acting as a gateway to the MaxiSys user community,users can share information regarding successful repairs,quick fixes and vehicle-specific trouble code information.Technicians can also contact the Autel software development team to discuss software issues encountered when diagnosing with the tool.Autel’s technical support can remotely log into the device with your tech still logged in.This real-time support produces quick and accurate solutions,allowing for simple transfer of data logs between tech and support specialists.

Autel MaxiSYS Elite boasts an enhanced version of its renowned diagnostics software,greater processor and communication speed,improved battery lift and a convenient docking and charging station for optimal viewing and continuous use.

AUTEL MaxiSys Elite Features:

1. The most extensive complete system coverage for more than 80 US domestic, Asian and European makes and models
2. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
3. Uniquely integrated vehicle programming capabilities working with a SAE J2534-1 & -2 compliant vehicle programming pass-thru interface
4. Automatic system and software updates with real-time push message notifications via internet
5. Instant remote control tech support anytime, anywhere
6. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
7. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
8. Unique ergonomic design with rubberized outer protection and a rugged internal housing
9. Hardware running speed is twice than Maxysys MS908P.

AUTEL MaxiSys Elite Specifications:

Operating System		Android 4.4.4 KitKat
Processor		NVIDIA Tegra® 4 (4-PLUS-1 Quad-core Processor) 1.8GHz with ARM Cortex – A15 CPU
Memory		2GB RAM & 32GB Embedded Memory
Display		9.7” Retina display with 2048X1536 resolution & Capacitive touch screen
Connectivity		802.11a/b/g/n/ac WIFI Version 2.1 3Mbs Bluetooth RJ45 Ethernet Connection 3.0 USB (2.0 Compatible) HDMI 1.4a SD Card (Support up to 32GB)
Camera		Rear: 8.0 Megapixel, Autofocus with Flashlight Front: 2.0 Megapixel
Sensors		Ambient Light Sensor, G-sensor
Audio Input/Output		Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack
Power and Battery		3.7V/13600mAH Lithium-polymer battery DC/12V/3A Power Supply
Input Voltage		DC/12V/3A
Power Consumption		Max 20W
Operating Temperature		-10 to +55°C
Storage Temperature		-20 to +70°C
Dimensions (W x H x D)		309 X 225 X 35 (mm)
Weight		1.59 kg
Protocols		ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L lins, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708V

AUTEL Maxysis Elite Vehicle List:

AUDI, BENZ, BMW, DACIA, EU FORD, AU Ford, Ford, Holden, LANDROVER, MINI, OPEL, PEUGEOT, RENAULT, SEAT, SKODA, VW, VOLVO, SMART, JAGUAR, BENZ SPRINTER, SAAB, FIAT, ABARTH, LACIA, ALFA ROMEO, VAUXHALL, MAYBACH, BENTLEY, BUGATTI, PORSCHE,GM, CHRYSLER, FORD,SUZUKI, KIA, DAWEOO, ISUZU, TOYOTA, SUBARU, SCION, NISSAN, MITSUBISHI, LEXUS, INFINITI, HYUNDAI, HONDA, ACCURA, MAZDA.

Autel MaxiSYS Elite J2534 ECU Programming Device:

1. Ethernet Port
2. USB Port
3. Power LED-illuminates solid green when powered on
4. Error LED-illuminates solid red when serious hardware failure occurs
5. BT LED-illuminates solid green when connected with the MaxiSys display tablet through BT communication
6. Ethernet LED-illuminates solid green when connected with the MaxiSys display tablet or an existing LAN via the Ethernet serial cable
7. USB Status Light-illuminates solid green when the device is properly connected and communicating with the MaxiSys display tablet or the PC via the USB cable.
8. Vehicle LED-flashed green when communicating with the vehicle’s network
9. BT Antenna
10. DC Power Supply Input Port
11. Vehicle Data Connector(DB26-Pin MVCI)
12. External Programming Voltage Output Port
Attention: Do not disconnect the reprogramming device while this status light is on! If the flash reprogramming procedure is interrupted while the vehicle’s ECU is blank or only partially programmed,the module may be unrecoverable.

Autel MaxiSYS Elite vs Autel MaxiSYS Pro 908P vs MS908 vs Mini MS905

Comparison	Autel Maxisys Elite	Autel Maxisys MS908P	Autel Maxisys MS908	Autel Maxisys Mini MS905
CPU	NVIDIA Tegra® 4 1.8GHZ	Samsung Exynos Quad 1.4GHZ	Samsung Exynos Quad 1.4GHZ	Samsung Exynos Quad 1.4GHZ
OS	Android 4.4.4 KitKat	AndroidTM 4.0 ICS	AndroidTM 4.0 ICS	AndroidTM 4.0 ICS
SSD HD	32GB	32GB	32GB	32GB
Touch Screen	9.7” 2048X1536 LCD Capacitive	9.7" 1024x768P LED capacitive	9.7" 1024x768P LED capacitive	7.9" 1024x768P LED capacitive
Connectivity	USB 3.0/WLAN/BT	USB 2.0/WLAN/BT	USB 2.0/WLAN/BT	USB 2.0/WLAN/BT
Dual Brand Wifi G/N	≥10GHz	2.4 & 5 GHz	2.4 & 5 GHz	2.4 & 5 GHz
Internal Battery	Y	Y	Y	Y
Weight	3.5lb	3.12lb	3.12lb	1.54lb
Camera(Rear)	8.0 Megapixel/AF/Flash	5.0 Megapixel/AF/Flash	5.0 Megapixel/AF/Flash	5.0 Megapixel/AF/Flash
Wireless BT VCI	USE J2534	USE J2534	Y	Y
Optional Lab Scope	Y	Y	Y	Y
Optional Video Scope	Y	Y	Y	Y
Boot Up Time	15 secs	20 secs	20 secs	20 secs
Autel's Powerful OEM Level Coverage	Y	Y	Y	Y
AUTO VIN Technology	Y	Y	Y	Y
Maxifix Cloud Based Info System	Y	Y	Y	Y
Shop Manager	Y	Y	Y	Y
ECU Coding	Advanced	Advanced	Y	Y
ECU Flash Porgramming	Y	Y	Optional W/ Maxiflash Kit	N
1996-2001 Connector Kit	Complete Connector kit	Complete Connector kit	Complete Connector kit	OBDII Connector Kit Optional Connector Kit
J2534 Hardware	Included	Included	Optional	N

AUTEL Maxysis Elite Package Including:

1pc x Maxisys Elite Interface

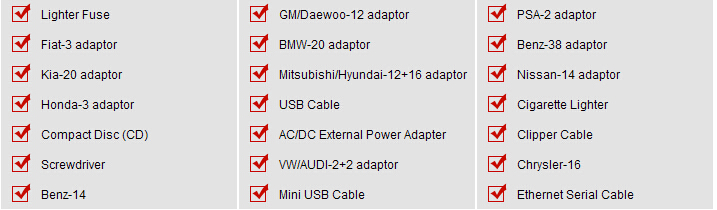

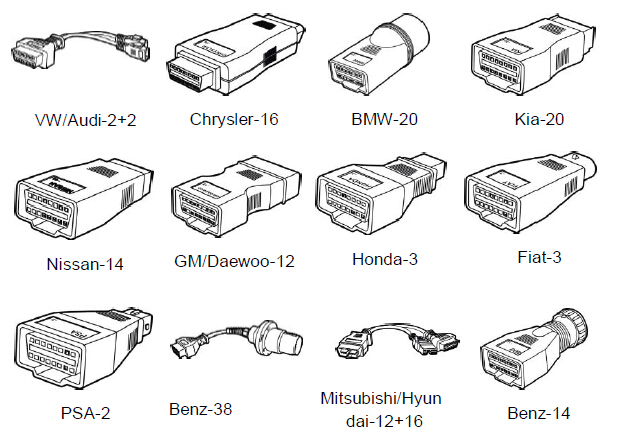

AUTEL Maxysis Elite Accessories as follows:



1pc x Lighter Fuse
1pc x GM/Daewoo-12 adaptor
1pc x PSA-2 adaptor
1pc x Fiat-3 adaptor
1pc x BMW-20 adaptor
1pc x Benz-38 adaptor
1pc x Kia-20 adaptor
1pc x Mitsubishi/Hyundai-12+16 adaptor
1pc x Nissan-14 adaptor
1pc x Honda-3 adaptor
1pc x USB Cable
1pc x Cigarette Lighter
1pc x Compact Disc (CD)
1pc x AC/DC External Power Adapter
1pc x Clipper Cable
1pc x Screwdriver
1pc x VW/AUDI-2+2 adaptor
1pc x Chrysler-16
1pc x Benz-14 (Optional)
1pc x Mini USB Cable
1pc x Ethernet Serial Cable

Tags: AUTEL MaxiSys Elite , MaxiSys Elite ,
