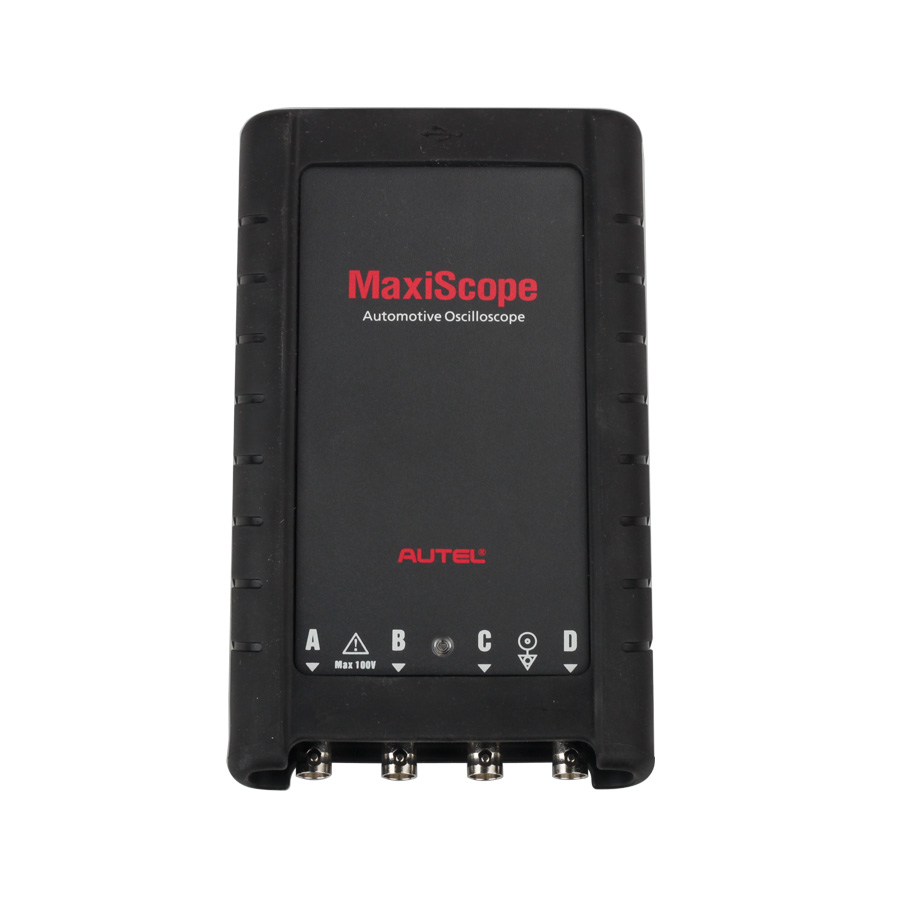

The MaxiScope MP408 is a PC based 4-channel automotive oscilloscope. It works in combination with your PC or MaxiSys Tablet, which turns into a powerful diagnostic tool, providing you an insight to the inner workings of a vehicle鈥檚 electronic circuits.

Featuring the user-friendly UI design combined with the unrivalled hardware specs, the MP408 system is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles. Power for the MaxiScope MP408 Module comes directly from the USB port of the connected PC, making the system very versatile and portable to use.

Features one-click auto setup of voltage scale and time base

Works on all makes and models of modern vehicles

Compatible with LIN, CAN and FlexRay data bus standards

Reads and displays electrical signals in high resolution waveforms

Allows manual editing of measurement parameter display

Records and plays back waveform data

Features color coded 4-channel control panel

Intuitive UI design features easy trigger point adjustment and real time scale info display

Direct power supply through USB connection

Free online software update through the Internet

Portable design with strong housing and protective rubber boot

Vertical resolution:12 bits

Channels:4

Bandwidth:20MHz

Accuracy:1%

Sensitivity:10mV/div to 20V/div

PC Interface:USB 2.0 – Cable supplied

Power Requirements:Powered from USB port

Input Ranges (full scale):±v50mV to ±100V in 11 ranges

Input Impedance:1MΩ in parallel with 22pF

Input Type:Single-ended, BNC connector

Input Coupling:Software selectable AC/DC

Overload Protection:±200V on single input

Buffer Memory:32M samples shared among active channels

Waveform Buffer:Up to 1000 waveforms

Timebase Ranges:100ns/div to 1000s/div

Operating Temperature Range:0°C to 50°C (15°C to 40°C for quoted accuracy)

Storage Temperature Range:-20°C to +60°C

Storage Humidity Range:5% to 95%RH, Non-condensing

Maximum Sampling Rate (Single Shot):

-1 or 2 channels in use:80MS/s

-3 or 4 channels in use:20MS/s

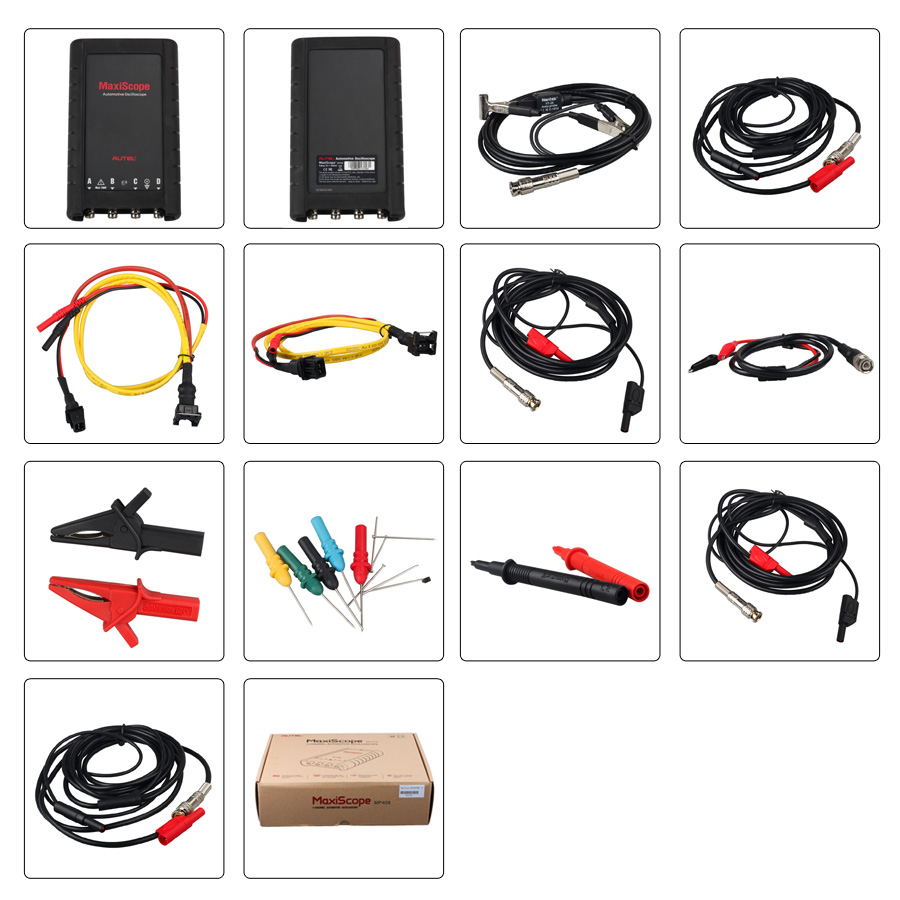

1pcs x Autel MaxiScope MP408 Interface

1pcs x Compact Disc (CD)

1pcs x 1.5m USB Cable

4pcs x 3m (10ft) Screened Test Leads

1pcs x Secondary Ignition Pickup

1pcs x 2-pin Breakout Lead

2pcs x Attenuators 20:1

1pcs x Large Crocodile Clip Set

1pcs x Small Crocodile Clip Set

1pcs x Acupuncture Probe Set

1pcs x Multimeter Probes
