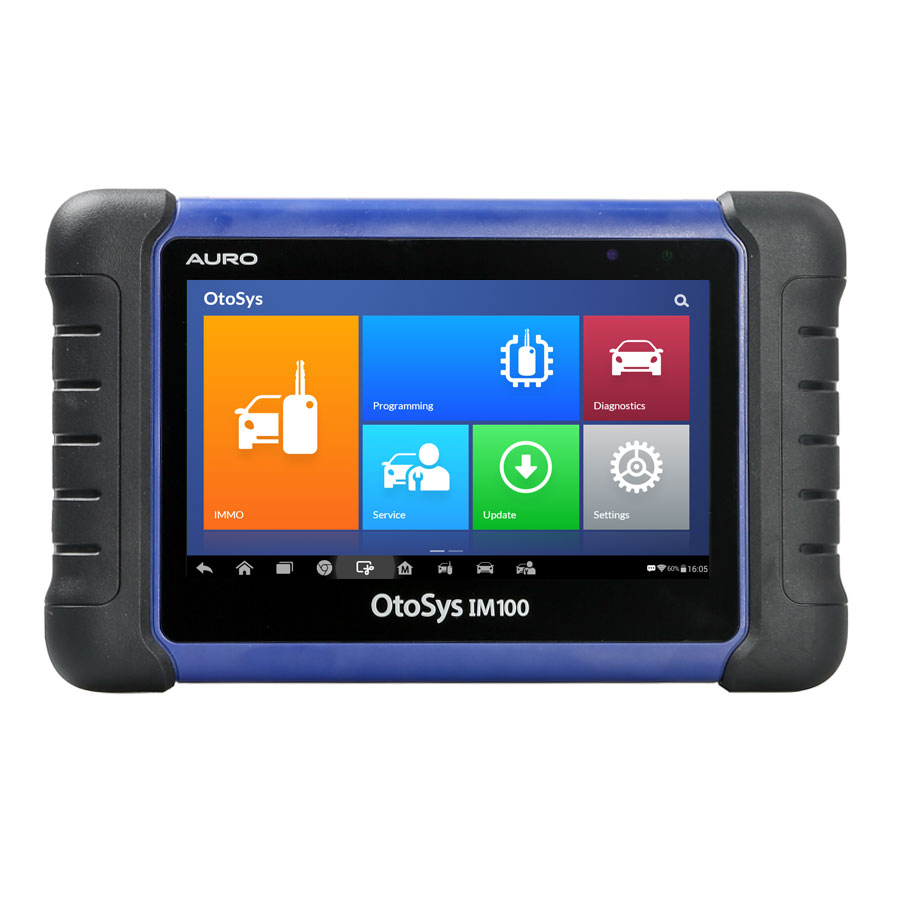

AURO OtoSys IM100 Automotive Diagnostic Tool

Auro OtoSys IM100 from Auro is the ONE tool you need for modern vehicle key programming! Based on a 7-inch Android touchscreen tablet, and equipped with the key programmer UP200, the OtoSys IM100 provides unparalleled Immobilizer and Key Programming functions as well as OE-level diagnostic functions and services!

If you want AURO OtoSys IM600, please contact our customer service for best offer.

AURO OtoSys IM100 Features:

* Support IMMO functions for different makes and models.

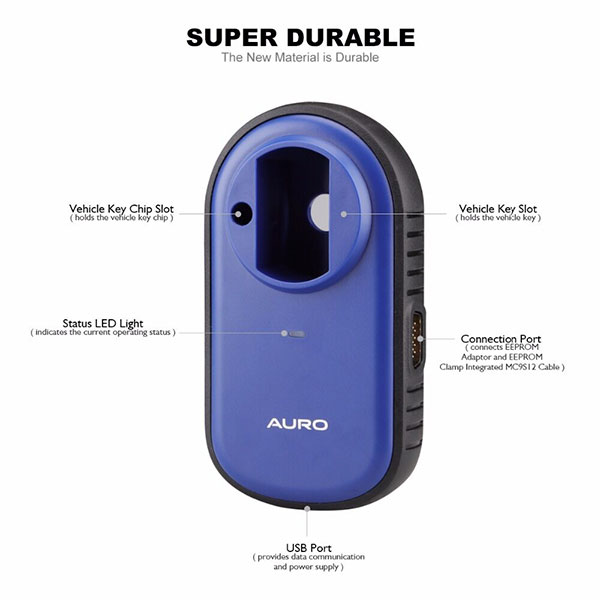

* Equipped with UP200 to support transponder read/write/identification, ECU/EEPROM chip read/write and IMMO password read.
* Display live data is text, graph & analog for easy data review.
* Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time.
* Support relearn parking brake pad after replacement.
* Support forced regeneration and adjusting injectors.
* Support Steering Angle Sensor (SAS) services.
* Support service mileage and service intervals reset.
* Support TPMS sensor relearn.
* Support battery registration and reset.
* Support online update.

AURO OtoSys IM100 Function List:
Some of the listed functions are manufacture dependent. The functions and vehicle coverage expand with new update release

Smart Mode (Guided and Automated Key Learning Function)
Auto Detect Make/Model/Year/System
Read PIN/CS
Read PIN/CS (All Keys Lost)
Key Learning
IMMO ECU Refresh/Coding
Remote Learning
AUDI Q5/A4/A5 2015-2017 Read PIN/CS
BMW FEM/BDC Key Learning and Adaption
Mercedes Key Learning
EEPROM Read/Write
MCU Read/Write
Key Programming
IC Card Read/Write
Mercedes Infrared Key Read/Write
Remote Frequency Detect
All Systems Diagnosis for Over 80 Makes and Models
OtoFlash (J2534 ECU Reprogrammer)
Oil Serive Reset
Parking Brake Pad Relearn After Replacement
Steering Angle Sensor Relearn
Battery Registration and Reset
Diesel Particulate Filter Regeneration
Tire Pressure Monitoring System
ECU Coding
VW/Audi Component Protection
Complete Service Functions

AURO OtoSys IM100 Vehicle Models List

Acura,Audi,BMW,Bentley,Chrysler,Citroen,DS,Dodge,Fiat,GM,Honda,Hummer,Hyundai,Infiniti,Jaguar,Jeep,Kia,Land Rover,Lexus,Mini,
Maserati,Mazda,Mitsubishi,Nissan,Opel,Peugeot,Renault,Suzuki,Saab,Seat,Skoda,Subaru,Toyota,VW,Volvo.

For detailed support vehile list, please refer to this link to check: http://pro.aurodiag.com/measurecarApp-1-1.html?m=94&operatorType=1

AURO OtoSys IM100 Update:

The Update application allows you to download the latest released software.The updates can improve the OtoSys applications’ capabilities, typically by adding new tests, new models, or enhanced applications to the database.

The Display Tablet automatically searches for available updates for all of theOtoSys software when it is connected to the Internet. Any updates that are found can be downloaded and installed on the device. This section describes installing an update to the OtoSys System. A notification message displays if an update is available when the Notifications Center function is enabled in the Settings application.

For the details of Auro OtoSyst IM100 Update method & procedures,please check:Auro OtoSyst IM100 Usermanual

AURO OtoSys IM100 Introduction

Auro OtoSys IM100 Compare to Auro OtoSys IM600

Some of the listed functions are manufacture dependent. The functions and vehicle coverage expand with new update release
NOTE: This function is supported. This function is not supported.

Features	OtoSys IM100	OtoSys IM600
IMMO
Smart Mode (Guided and Automated Key Learning Function)
Auto Detect Make/Model/Year/System
Read PIN/CS
Read PIN/CS (All Keys Lost)
Key Learning
IMMO ECU Reset/Adaption
IMMO ECU Refresh/Coding
Remote Learning
AUDI Q5/A4/A5 2015-2017 Read PIN/CS
BMW FEM/BDC Key Learning and Adaption
Mercedes Key Learning
Programming
EEPROM Read/Write
MCU Read/Write	Basic	Advanced
Key Programming
IC Card Read/Write
Mercedes Infrared Key Read/Write
Remote Frequency Detect
OE-Level Diagnostics
All Systems for Over 80 Makes and Models
OtoFlash (J2534 ECU Reprogrammer)
Advanced Service Functions
Oil Serive Reset
Parking Brake Pad Relearn After Replacement
Steering Angle Sensor Relearn
Battery Registration and Reset
Diesel Particulate Filter Regeneration
Tire Pressure Monitoring System
ECU Coding
VW/Audi Component Protection
Complete Service Functions
Tool Features
Built-in Rechargeable Li-ion Battery	5000 mAh	15000 mAh
Internet Updatable	Wi-Fi	Wi-Fi
Multilingual Support
Limited One Year Warranty
Touchscreen	7-inch	10.1-inch
Memory	32 GB	64 GB
Processor	Quad-core processor	Hexa-core processor
Camera		8.0 Megapixel
Resolution	1024x600	1920x1200

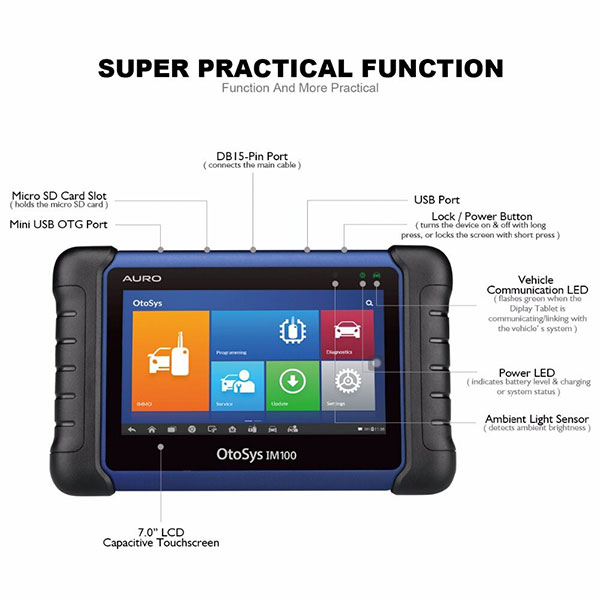

AURO OtoSys IM100 Specifications:

Recommended Use	Indoor
Operating System	Android™ 4.4.4, KitKat
Processor	Cortex-A9 processor (1.6 GHz)
Memory	1GB RAM DDR3 & 32GB ROM
Display	7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity	Mini USB 2.0;
	USB 2.0;
	Wi-Fi;
	HDMI Type A;
	Micro SD card slot (supports up to 32GB);
Sensors	Ambient light sensor for brightness auto changing
Audio Input/Output	Input: N/A;
	Output: buzzer;
Power and Battery	3.7 V/5000 mAh lithium-polymer battery;
	Charges via 5 VDC power supply;
Tested Battery Life	Around 4.5 hours of continuous use
Battery Charging Input	5 V/1.5 A
Power Consumption	500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp.	0 to 55°C(32 to 131°F)
Storage Temp.	-20 to 60°C (-4 to 140°F)
Operating Humidity	5% - 95% non-condensing
Dimensions (W x H x D)	237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)
Net Weight	788 g (2.42 lb.)
Supported Automotive Protocols	ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code,
	SAE-J1850 VPW, SAE-J1850PWM,
	ISO11898 (Highspeed, Middlespeed, Lowspeed and
	Singlewire CAN, fault-tolerant CAN),
	SAE J2610, GM UART,UART Echo Byte Protocol,
	Honda Diag-H Protocol, TP2.0, TP1.6

Auro OtoSys IM100 FAQs:

Q1:Does this program the actual key transponder and the fob or just the fob?
A1:It can support EEPROM Read/Write and Key Programming.

Q2:Does this cover ford?
A2:Yes,sure.It can support ford.

Q3:Does it read the vehical pin to do Chrysler fobs?
A3:IM100 can support to read PIN code on Chrysler. Once got this tool, please update Chrysler software to the latest version.

Q4:Hello, does this device now program bmw keys that has cas3/4 ?
A4:IM100 can support CAS3, but can't do CAS4.

Q5:Will the im100 support key programming for 2006 lexus is350 and 2010 audi q5 ?
A5:Yes, key programmer IM100 can do it.

Q6:Can this program new keys and key fobs for all Japanese cars outside of the US?
A6:Yes, it can support most of vehicles on the road today and also Aurodiag will be keeping upgrade it to cover more vehicels in future.

Q7:Will it do bmw key learning?
A7:Hello, yes, it can support BMW FEM/BDC Key Learning and Adaption.

AURO OtoSys IM100 Package includes:

1pc x OBD II Cable
1pc x Mini USB Cable
1pc x USB External Power Adaptor
1pc x Quick Guide
1pc x UP200
1pc x APB001 – EEPROM Adaptor
1pc x APB002 – 68HC908 Adaptor
1pc x APA002 – EEPROM Socket
1pc x APA001 – EEPROM Clamp Integrated MC9S12 Cable
