Audi-VW Airbag Reseter

Top 2 Reasons to Get Audi-VW Airbag Reseter

1. Language: English
2. No Need To Connect with PC

Description:

1.Audi-VW Airbag Reseter works without additional computer and trough car OBD II connector can erase airbag sensor "crash data" or only fault memory.

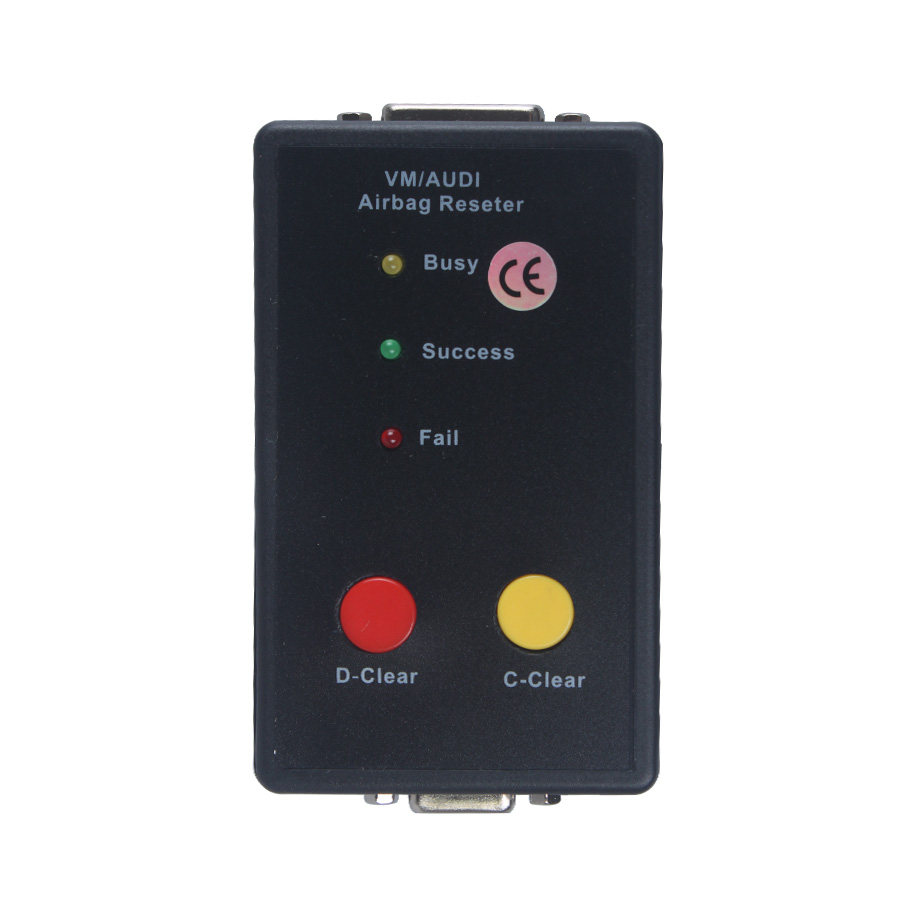

Very simple user instruction: connect this tool to Audi/VW car OBD II connector. Right red button is for airbag "crash data" erase. Push this button once and wait: yellow light start to flash and after 15 second green light inform you that "crash data" is erased. Red light set ON if erasing is not successful.

2.Left yellow button is for erase airbag "fault memory" or "errors". If airbag warning lamp go OFF and immediately ON, evaluate airbag "error memory" using any VW-Audi diagnostic equipment and repair.

Support list:

1. Support new Audi airbag sensors(with hc12cpu or CR16 PLCC44 ) 1999-2002 crash data and DTC65535 (Controller Malfunction) erase, such as:4B0959655G, 4B0959655J,4B0959655C, 8L0959655G, 4D0 959 655 J, 8D0 959 655 J , 8D0 959 655 F, 8D0 959 655 M, etc

2. Support new Airbag sensor (with CR16 80QFP) from VW-Audi (A3, A4, A6, A8 2002-2005, Touareg) crash data and DTC65535 (Controller Malfunction) erase, such as 4B0959655Q ,etc.

3. Support crash data and fault memory erase:

AUDI A4, A6, A8 1994-1997: Airbag V BOSCH : 8A0 959 655 C (Bosch 0 285 001 038), 8A0 959 655 K (Bosch 0 285 001 155), 8A0 959 655 K (Bosch 0 285 001 151) - Crash data erase, Fault erase;
AUDI A3, A4, A6, A8 1999 : Airbag 7 BOSCH - 4B0 959 655 C, 4B0 959 655 J, 4D0 959 655 C, 4D0 959 655 H, 8D0 959 655 C, 8D0 959 655 L, 8L0 959 655 F - all Bosch Airbag 7 - Crash data erase, Fault erase;
Audi A2, A3, A4, A6, A8 - 1999 : Airbag 8 BOSCH - Crash data erase, Fault erase (can't erase "Controller Malfunction" for this moment);VW - Golf III, Passat B4, Sharan - 1J0 909 603 SIEMENS - Crash data erase, Fault erase;
VW - Golf IV, Passat B5 - 1J0 909 609, 1J0 909 607 - SIEMENS - Crash data erase, Fault erase;
VW - Golf IV, Passat B5 - 3B0 959 655 B, 8L0 959 655 A - all BOSCH - Crash data erase, Fault erase;
VW - Golf IV, Passat B5, Sharan - 6Q0 909 605 A, 6Q0 909 605 B - SIEMENS - Crash data erase, Fault erase;
VW - Golf IV, Passat B5, Sharan - 1C0 909 605 C, 1C0 909 605 F, 1C0 909 605 H, 6Q0 909 605 C - SIEMENS - Crash data erase, Fault erase;
VW - Passat B6 - new SIEMENS - Crash data erase, Fault erase.

Package list:

1pc x Audi-VW Airbag Reseter
1pc x OBDII connector

FAQ:

Q: Customer says when it connect the car, the yellow light is on, few seconds later, fail red light is on, but it can not reset the airbag.
A: In this case, it means it can not do this car.

Q: SR03 can read the chip to clear the fault code?
A: It can not read the fault code and read chip.
