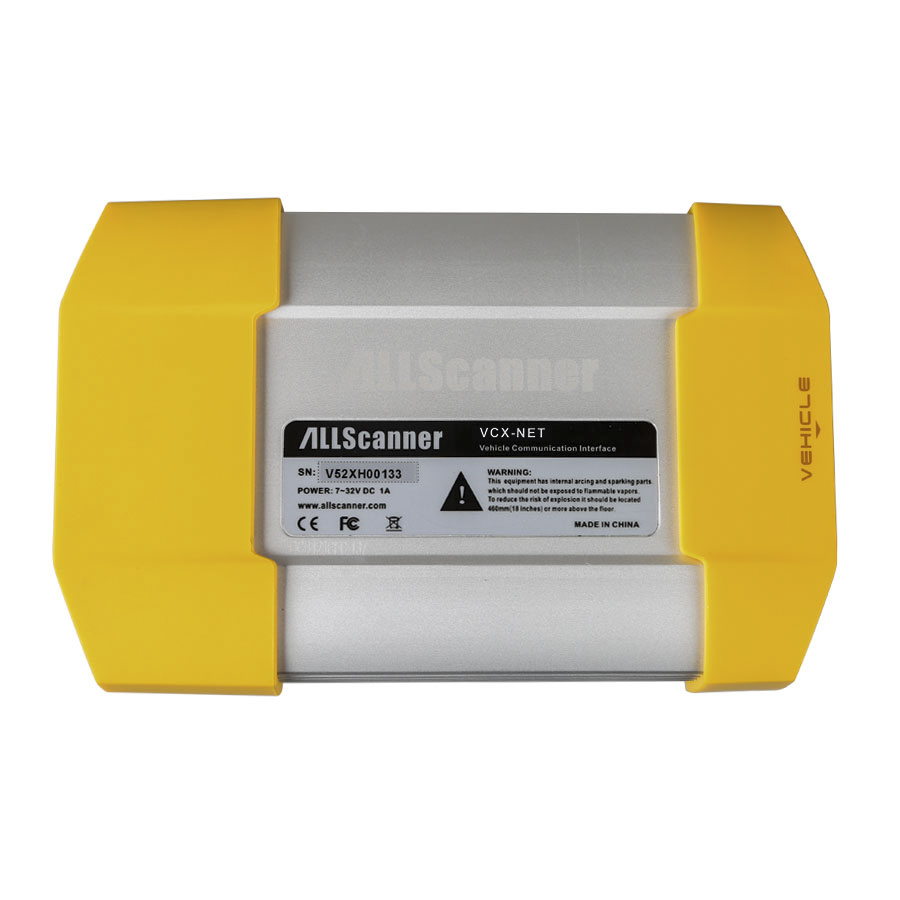

VXDIAG VCX HD Heavy Duty Truck Diagnostic System

VXDIAG VCX HD Software: CAT, HINO, VOLVO, CUMMINS, NISSAN

Allscanner is available to diagnose most of heavy trucks, such as CAT, VOLVO, HINO, Cummins, Nissan. Also it can diagnose Buses, Grabs, Cranes and Engineering machine.

Main Function: Fault code diagnosis, maintenance guide, data stream reading, data resetting, PCM (ECU) reflashing

VXDIAG VCX HD Features:

1. Meet the industry standard RP1210 A/B
2. Optional connectivity: USB wired and 802.11b/g WIFI wireless
3. The adapters and cables are durable.
4. Able to communicate and diagnose heavy and light trucks with 12V / 24V.
5. Hardware meet European CE and American FCC requirements.
6. Support firmware update.

Compatible Protocols:

CAN125/CAN250/CAN500/CAN1000
SAE-J1939 CAN
SAE-J1708/J1587 On RS485
CAT DATALINK (Caterpillar)
ATA DATALINK (Caterpillar)

Compatible Software and Application:
CATERPILLAR V2010A/2010B
CUMMINS V7.5
VOLVO PTT1.12
ALLISON DOC V8.4
BENDIX V6.3.8.0/V5.6.3.0
DETROIT DIESEL DDDL V7.05
EATON V3.2
INTERNATIONAL DLB/ICAP/IPTS/MASTER
MERITOR TRANSSOFT 2.1
PERKINS EST 2010B
TRIAL_ISUZU
HINO_EXPLORER V2.03

Software specification:

1.VCX HD driver program meets the industry standard of RP1210A/B
2.VCX HD is a standard Passthru reprogramming tool, and can perform ECU reprogramming online.

VXDIAG VCX HD Specifications:

CPU:32bit 180MHz ARM CPU
Storage:1MByte
Cable Interface (PC):USB2.0
Network Interface (Optional): LAN 10/100M Ethernet
Wireless Interface (Optional): WLAN 802.11 b/g/n Wi-Fi
Diagnostic Interface:24PIN highly reliable and easy-swap interface to OBD-II 16PIN
Indicator Light:4 LED: Power, Wireless, Host and Vehicle.
Power: Vehicle power input: DC 9V-36V
Compatible: 12V&24V
Power Dissipation: 2W
Size :L x W x H = 175 x 110 x 45 (mm)
Weight: Device Weight: 0.6 Kg
Package: Weight: 2.3 Kg
Shell: Aluminum metal & Rugged plastic shell
Working Temperature: -20锝?70 °C
Storage Temperature: -40锝?85 °C
Standard Certification: Certification of Euro CE and US FCC
