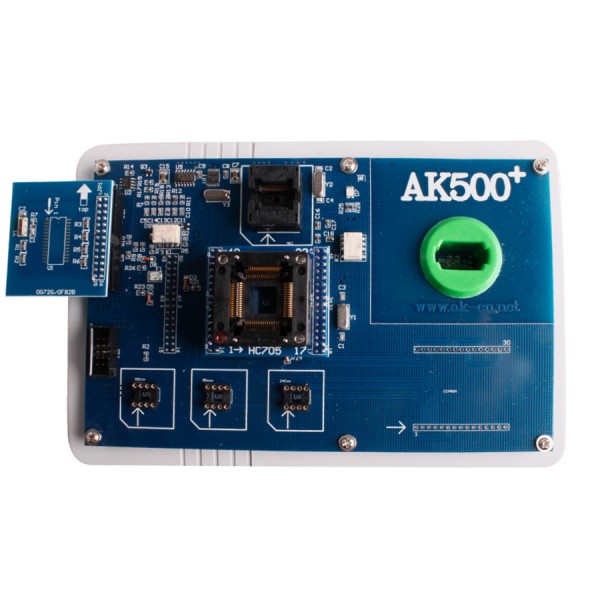

New Released AK500+ Key Programmer For Mercedes Benz (With Database Hard Disk)

Top 7 Reasons To get AK500+

1) Match and support function "Keyless Go" of Benz Infrared Key;
2) Support Benz Infrared keys lock and unlock for EIS+ESL+ESM , the leading technology all over the world;
3) Support Directly reading EEPROM for BENZ DAS( 1995-1998 )via OBD, can to unlock DAS when you lost all keys and DAS is locked;
4) Read and write the ESL of E/Class and C/Class via K_line, no need remove ESL;
5) Support Benz ECU's flash(29F400 and 29F800) generate key data. Need use STAR 2000 to do ECU coding.
6) No need to choose the MCU type of EIS. When load EIS file, recognise EIS file, and generate key file. If your MCU is HC705, software will automatically suggest "load next EIS file of HC705"
7) Powerful Motorola MCU programming function,Directly reading dumps of EEPROM(HC908) and Flash(HC912,HC9S12,HC9S12X)for motorola MCU,
in support of the engine ECU of Benz, VW and Audi etc MPC(MPC555/556,MPC561/562,MPC563/564),external Flash(MB58BW016,29BL802C,AM29BDD160,S29CD016,DE28F800 etc.) and external EEPRO(M95xxx). 8}An advanced tool of car ECU repair and programming, odometer adjustment and key programming as well.

Notice:
1. Support Language: English
2. Computer System Requires: XP system
3. Update by Email

Support models:

Mercedes-Benz: W220/W220 "Keyless Go" W208/W210/W220/W203/W215/W230/W209/W219/W211/W230/W215 EEPROM(M95xxx)Volkswagen Audi:MPC(MPC555/556,MPC561/562,MPC563/564),external Flash(MB58BW016,29BL802C,AM29BDD160,S29CD016,DE28F800 etc.) and external EEPROM(M95xxx)

Specification:

1.Follow-up upgrade:
Benz(R or W220) shift module ISM and 722.9 gearbox ECU drive authority;
Upgrade ESM read and write EEPROM.

2.Product parameters:
Online Communication Interface: USB2.
Power Specifications: AC Input 100-240V, 50/60HZ; output 12V/2A DC power consumption: 40W

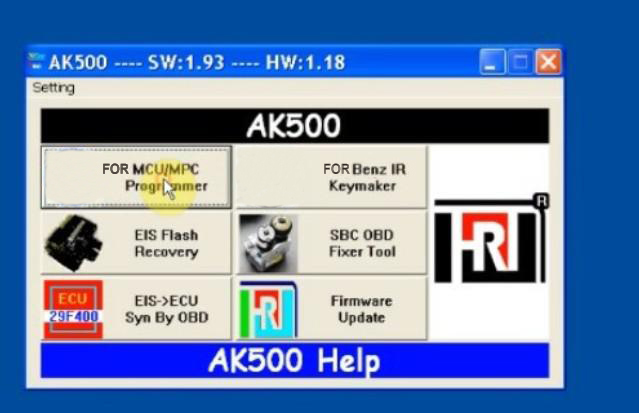

AK500+ Software Display:



FAQ

Q: How to read EIS data?
A: 1) import the EIS data into SKC calculator; 2) get the key data; 3) write the key data into the new key; 4)the car can start now.

Q: Where to watch AK500+ Video tutorial and user manual?
A: After installed the software, right-click the "AK500+_exe"-property-find target, then you will see the video and user manual.

Q: What is AK500+ moveable Hard Disk used for?
A: It is used when generating key data. If you have SKC the moveable Hard Disk won’t be used, otherwise it will be used.
