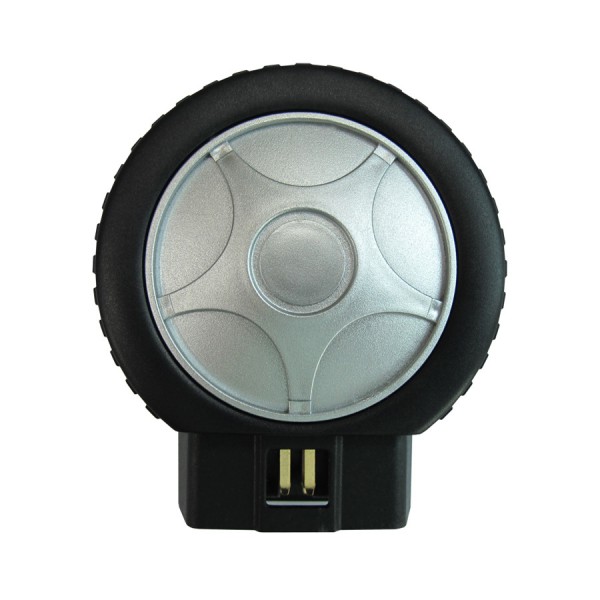

ADS1801 VW Scan Tool is a smart diagnostic tool scanner for VW family. It works on android and windows system. Use Bluetooth and USB double way to make connection. It supports all Volkswagen, Audi, Seat and Skoda sold worldwide since 1990. Support KWP1281, ISO 9141-2(CARB), ISO 14230 (KWP2000) and ISO 15765(CAN) protocols.

Top 8 Reasons To Get ADS1801:

1. Llifetime Free Update Online

2. Support Both Windows XP/7 and Android.

3. Except VW Software, Package with Free OBD2 Software, Support Almost All Vehicle from European, USA and Asian, Also Support CANBUS
4. Bluetooth Available

5. Storage Record Test Results (PC Version Only)

6. Test Procedure Playback (PC Version only )

7. Test Result Print Function (PC Version only)

8. Support Special Function

1. Work with Volkswagen, Audi, Seat, Skoda sold worldwide since 1990.

2. Read and erase Diagnostic Trouble Codes (DTCs) of engine, ABS, airbag, A/T, radio, A/C, cent., elect steering wheel, instruments and immobilizer, etc. (78 Systems)

3. Read and clear generic trouble codes of cars using KWP1281, ISO 9141-2(CARB), ISO 14230(KWP2000) and ISO 15765(CAN) protocols.

4. Turn off MILs of engine, airbag, ABS, A/T and most other systems.

5. CAN (Controller Area Network) capability.

6. Reset oil service light.

7. Support all test modes, including ECU Information, read fault codes, measuring blocks, clear fault codes, basic settings, adaptation, single reading, output tests, code module, login, chassis num adjust, end output, readiness.

8. Display I/M readiness status.

9. Work on mobile phone, tablet PC, laptop and home PC.

10. On-line updatable.

1. Retrieves ECU information

2. Reads DTCs and Clears DTCs

3. Displays live data stream

4. Basic system adjustment and Channel adjustment

5. Reads independent channel data

6. Test actuator and Programs control unit

7. System log and sends chassis number

1. Reset oil lamp, IN1 and IN2.

2. Clear the value of self-learning

3. Adaptation of ECU and throttle

4. Adaptation of waste gas recirculation’s value

5. Basic settings of automatic transmission

6. Reset maintenance lamp

7. Remove or program remote car key, dashboard

8. Reset steering angle sensor

9. Fuel level sensor adaptation

10. Air bag lift / activation, dashboard language

11. Basic settings for air conditioner / heating system

12. Program new airbag control module

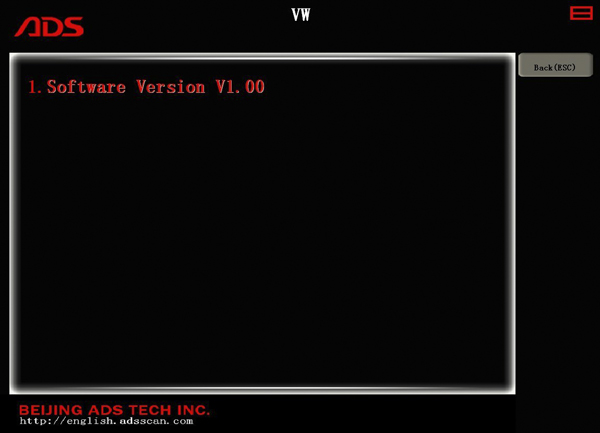

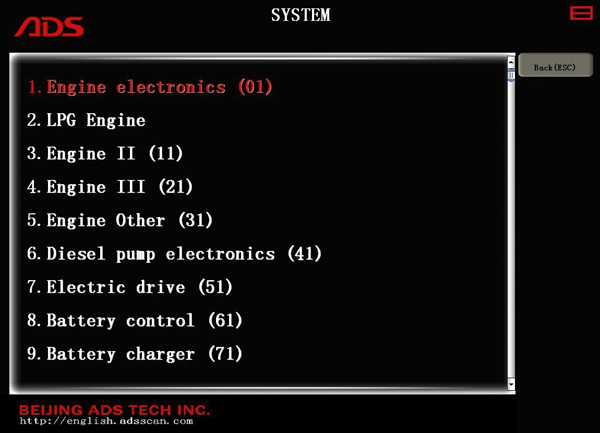

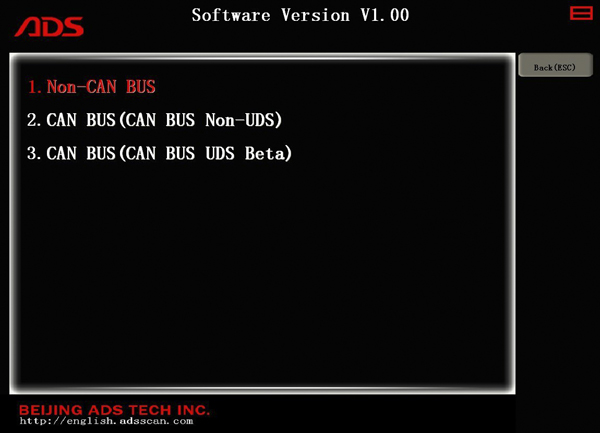

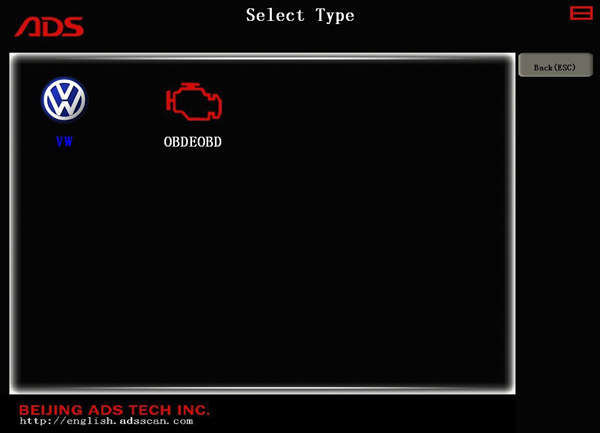

ADS1802 PC Operate Pictures:

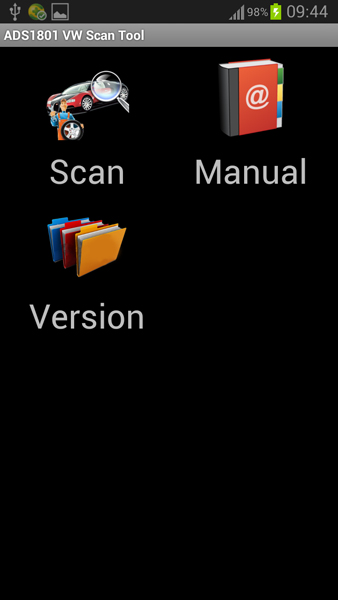

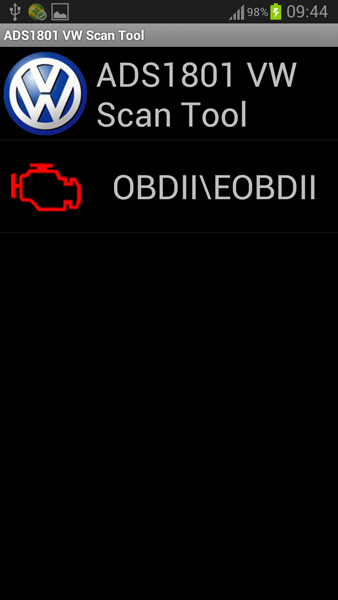

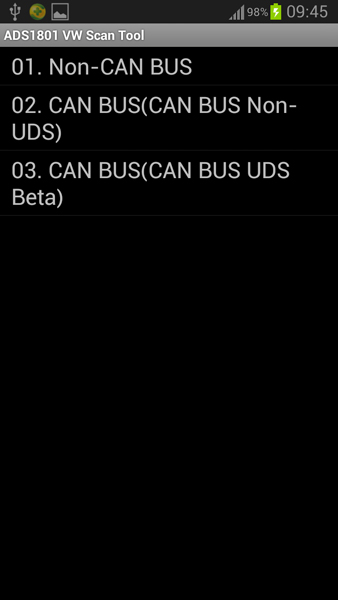

ADS1802 Android Operate Pictures:
