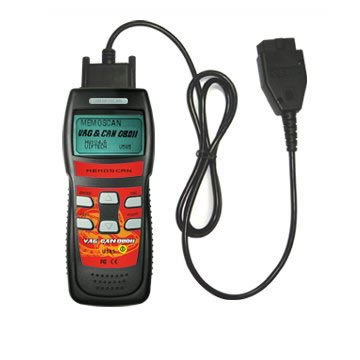

U585 Super Memo Scanner for VAG AND CAN-OBD2 description:

1.1 Tool Description
1.LCD Display , 128*64 pixel display with contrast adjustment, Backlit
2.enter key  selects displayed
3.exit key   go back to the previous screens
4.up/down arrows-moves the selection pointer and scrolls up or down.
5.LEFT/RIGHT arrows-Select responses and moves cursor.
6.OBDII connector cable, connect car and the scan tool
7.Battery compartment

1.2 Product Specifications
• Display-Backlit LCD,128*64 pixel display.
• Operating Temperature- 0 to 50
• Internal Power- 9v Cell
• External Power: 10.0 to 15.5 vols provided via vehicle battery
• Update by internet
Dimensions:
• 195mm Length  81mm Width  32mm Height
• OBDII connector , 1500mm

1.3 Product Features
1.Works on all 1996 and newer cars & light trucks that are OBD II compliant (including the VPW, PWM, ISO, KWP 2000 and CAN protocols)
Reads and clears generic and manufacturer specific Diagnostic Trouble Codes (DTCs)
trouble codes display on the LCD, needn't the code book.
Scanning live data
Reading Freeze Frame Data
Testing I/M Reading Status
Reading vehicle info
Rescanning Data
2.works all VW, AUDI, SKODA, and SEAT vehicles. it can nearly do the same work as that of a VAG1551/1552. Available Functions:
Control Unit Information
Read Fault Codes
Measuring Blocks
Clear Fault Codes
Basic Setting
Adaptation
Single Reading
Output Tests
Code Module
Login
Service Oil Reset
Code Modes
Dealership Code Set
support the following systems:
Engine
Transmission
Airbag, etc.
there are 78 systems available.

VEHICLE COVERAGE:
• GM '96 - Current Year (OBD-II)
• Ford '96 - Current Year (OBD-II)
• Chrysler '96 - Current Year (OBD-II)
• Toyota '96 - Current Year (OBD-II)
• Honda '96 - Current Year (OBD-II)
• NISSAN '96 - Current Year (OBD-II)
• All other Asian and European '96 - Current Year (OBD-II)
• All new CAN protocol cars.
• All VW/AUDI cars.

Support language: French,Czechish,Spanish,English,Polish.
