u581 Detail:

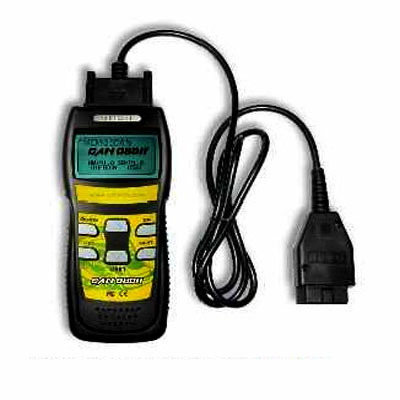

u581Tool Description
1.LCD Display , 128*64 pixel display with contrast adjustment, Backlit
2.enter key selects displayed
3.exit key go back to the previous screens
4.up/down arrows-moves the selection pointer and scrolls up or down.
5.LEFT/RIGHT arrows-Select responses and moves cursor.
6.OBDII connector cable, connect car and the scan tool
7.Battery compartment

u581 Specifications
Display-Backlit LCD,128*64 pixel display.
Operating Temperature- 0 to 50
Internal Power- 9v Cell
External Power: 10.0 to 15.5 vols provided via vehicle battery
Update by internet

u581 Dimensions:
195mm Length 81mm Width 32mm Height
OBDII connector , 1500mm

u581 Features
Works on all 1996 and newer cars & light trucks that are OBD II compliant (including the

VPW, PWM, ISO, KWP 2000 and CAN protocols)
Reads and clears generic and manufacturer specific Diagnostic Trouble Codes (DTCs)
trouble codes display on the LCD, needn’t the code book.
Scanning live data
Reading Freeze Frame Data
Testing I/M Reading Status
Reading vehicle info
Rescanning Data

u581 VEHICLE COVERAGE:
GM ’96 - Current Year (OBD-II)
Ford ’96 - Current Year (OBD-II)
Chrysler ’96 - Current Year (OBD-II)
Toyota ’96 - Current Year (OBD-II)
Honda ’96 - Current Year (OBD-II)
NISSAN ’96 - Current Year (OBD-II)
All other Asian and European ’96 - Current Year (OBD-II)
All new CAN protocol cars.
