u381

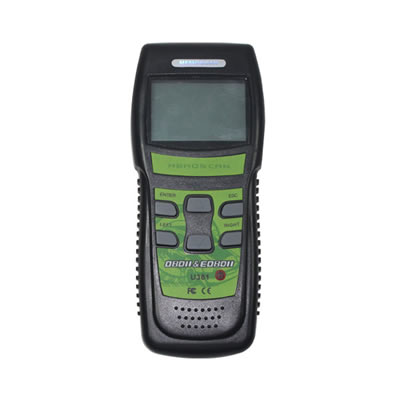

1.1 Tool Description
1.LCD Display , 128*64 pixel display with contrast adjustment, Backlit
2.enter key  selects displayed
3.exit key   go back to the previous screens
4.up/down arrows-moves the selection pointer and scrolls up or down.
5.LEFT/RIGHT arrows-Select responses and moves cursor.
6.OBDII connector cable, connect car and the scan tool
7.Battery compartment

1.2 Product Specifications
Display-Backlit LCD,128*64 pixel display.
Operating Temperature- 0 to 50
Internal Power- 9v Cell
External Power: 10.0 to 15.5 vols provided via vehicle battery
Dimensions:
195mm Length  81mm Width  32mm Height
OBDII connector , 1500mm

1.3 Product Features
Works on all 1996 and newer cars & light trucks that are OBD II compliant (including the VPW, PWM, ISO, KWP 2000.
Reads and clears generic and manufacturer specific Diagnostic Trouble Codes (DTCs)
trouble codes display on the LCD, neednt the code book.
Scanning  live data
Reading Freeze Frame Data
Testing I/M Reading Status
Reading vehicle info
Rescanning Data

VEHICLE COVERAGE:
GM 96 - Current Year (OBD-II)
Ford 96 - Current Year (OBD-II)
Chrysler 96 - Current Year (OBD-II)
Toyota 96 - Current Year (OBD-II)
Honda 96 - Current Year (OBD-II)
NISSAN 96 - Current Year (OBD-II)
All other Asian and European 96 - Current Year (OBD-II)
