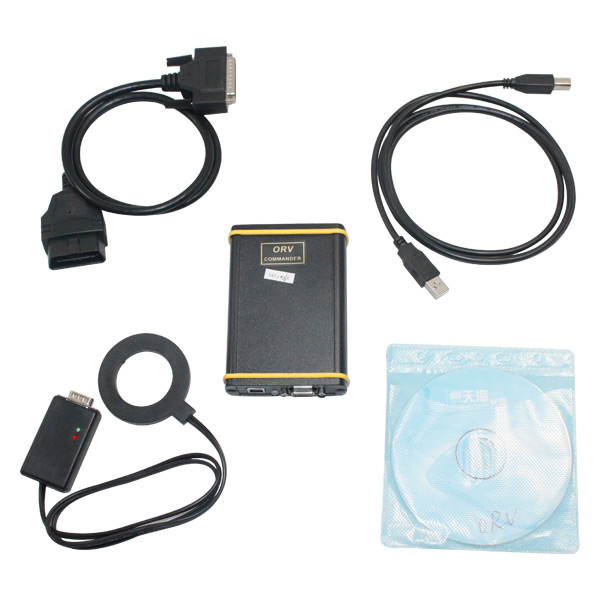

ORV 4-in-1 COMMANDER

1.Commander for OPEL/VAUXHALL ver.3.5

Commander for OPEL/VAUXHALL is professional software for diagnostic of Opel/Vauxhall vehicles. It is capable to perform a diagnostic of any unit, which operates under one of the following protocols: Keyword 82, Keyword 2000 and GMLAN. It provides some unique functions, which are not supported by any other diagnostic tool.
ORV 4-in-1 COMMANDER Standard diagnostic functions:
For all electronic control units reading identification data
For all electronic control units read error (DTCs)
For all electronic control units clear error (DTCs)
Device scan
Data Display / Measured values
Security code programming
Vehicle identification programming
Injector programming - Diesel engines
Programming of the CAN configuration
Program immobilizer function
- Adaptation of Engine Control Module to immobilizer
- Adaptation of Immobilizer to the vehicle
Program immobilizer outputs
- Enable/Disable Anti Theft Warning system
ORV 4-in-1 COMMANDER Special functions:
Read security code
- With a new special function ON005 you can read Security code from all Opel/Vauxhall vehicles with CAN BUS by OBDII - Astra H, Corsa D, Vectra C, Zafira B, Agila B, Insignia
- Read security code PSG16 (Y20DTH, Y22DTR) - Astra G, Zafira, Vectra C
Read/Write EEPROM
- Magneti Marelli 1.3 16V CDTI (Z13DT) - Agila, Corsa C, Tigra B
- SIMTEC71.1(Z18XE,Z18XEL) - Astra G, Corsa C, meriva, Tigra B, Vectra B, Zafira
- Read eeprom of the instrument Panel Cluster of Astra G, Corsa C, Meriva, Tigra B
Odometer correction
- Odometer correction - Movano B - Instrument Panel by OBDII
- Odometer correction in EDC16 - 1.7;1.9 by OBDII
- Odometer correction in ECU - Bosch ME7.6.2, Delco MT35E
- Odometer correction PSG16 (Y20DTH, Y22DTR) - Astra G, Zafira, Vectra C
- Instrument Panel Cluster - Astra G; Corsa-C; Meriva; Tigra-B; Vectra-B. NOT SUPPORT TRW IPC!
Engine Flasher
- Read/Write flash memory from ECU - Simtec 70, Simtec 71, Delco HDRC, Marelli MJD 602, Motronic 7.6, Delco MT35E
Key Learning
- Read mechanical key number
Radio
- Read radio code by OBD from Delco CDR500
Airbag
- Erase crash data by OBD - Airbag SAB6 - Siemens with MCU Motorola HC11
Dump Tool
- Airbag TEMIC Astra G, Corsa C (68HC908AZ32) - clear crash data
- SIEMENS (68HC11E9) GM 24416701 DJ - clear crash data
- Read immobilizer II (TMS) security code from dump
- Bosch EDC16 odometer correction
- Magnetic Marelli odometer correction
- Astra G, Astra H, Corsa D instrument panel odometer correction

Advanced functions:
Security access
Custom request - manually transmission of messages to a unit (KWP82/KWP2000/CAN)
Custom query:
- Read memory by address - possibility to read/program memory of electronic control units
- scanning of a unit memory space - automatically discover of all accessible memory

Supported vehicles:
Insignia - 2008+
Agila - 2000-2007 year
Astra F - 1992-2001 year
Astra G - 1998-2009 yer
Astra H - 2004+
Tigra - 1995-2000 year
Tigra B - 2004+
Vectra B - 1996-2001 year
Vectra C/Signum - 2002+
Corsa B - 1993-2001 year
Corsa C - 2001-2008 year
Codsa D - 2007+
Meriva - 2003-2008 year
Zafira - 1999-2005 year
Zafira B - 2005+
Omega B - 1996-2003 year
Frontera - 1997-1998 year
Frontera B - 1999-2004 year
Calibra - 1990-1997 year
Vivaro - 2001+
Movano - 2004+

2.Commander for Renault Ver.2.10

Renault key learning function still in developing.

Functions :

Connecting with all electronic control modules in the vehicle. Working by K and CAN bus diagnostic connection.
For all electronic control units reading identification data
For all electronic control units read and clear error (DTCs)
Airbag crash data clear Dacia Logan/Duster by OBDII
Program ID in UCH module
Odometer correction for Renault Clio/Kango/Meganne with HC908 JAEGER
Coverage K-line and CAN Bus vehicles
- Megane II X84 2003-2006
- Megane II Ph2 X84 2007+
- Scenic II X64 2003+
- Scenic II Ph2 X64 2007+
- Laguna II X56 2000-2005
- Laguna II Ph2 X74 2005-2007
- Valsatis X73 2002+
- Valsatis Ph2 X73 2006+
- Espace IV X81 2003-2006
- Espace IV Ph2 X81 2006+
- Master Ph2 X70 2002-2006
- Master Ph3 X70 2007+
- Traffic II X83 2002-2006
- Traffic II Ph2 X83 2007+
- Kango MUX Ph2 X76 2002-2007
- Kango X61 2008+
- Clio II Ph2/3 X65 2002-2006
- Clio Symbol
- Clio Thalia
- Clio Sedan
- Clio Classic
- Clio III 2005+ *
- Modus 2004+ *
- Master III *
- Dacia Duster *
- Logan X90 2004-2008
- Logan Ph2 X90 2008+
- Sandero B90 2008+
- Solenza 2003-2005
- Samsung SM3 2006+
- Fluence 2009+
- Twingo Ph2 X06 2002-2007
- Opel Vivaro 2002-2006
- Opel Vivaro Ph2 2007+
- Opel Movano Ph2 2002-2006
- Opel Movano Ph3 2007+
- Nissan Primestar Ph2 2002-2006
- Nissan Primestar Ph3 2007+

3.Commander for Volvo 1.0
Correction mileage in the dashboard and in the CEM module by OBDII

Supported models:
Volvo XC60 2008+
Volvo XC80 2008+

4 TAG KEY TOOL:

With this software you can program keys/transponders for vehicles, bikes or trucks from different brands that using Megamos 13, Megamos 48 (Megacrypt I), Megamos 8E (Megacrypt II), Texas 4C, Temic 11, Temic 12, T5, TK5555, Philips PIT - 7930/7931/7935 (PIT), Philips HITAG2 7936, 7941, 7942, 7943, 7944, 7945, 7946, 7947, 7952, 7953, 7961
