Description: The MaxScan GS500 is the best solution to troubleshoot all 1996 and newer OBD2 Compliant vehicles. The scan tool delivers all nine OBD-II test modes, retrieving live engine DataStream and parameters to enable technicians accurately diagnose the toughest problems.

Features
1. Reads generic and certain proprietary manufacturer diagnostic trouble codes (including pending codes)
2. Erases diagnostic trouble codes
3. Resets the engine check light (MIL - Malfunction Indicator Lamp)
4. Detects OBDII freeze frame information
5. Retrieves the VIN (Vehicle Identification Number), CIN & CVN on vehicles from 2002 that support Mode 9
6. Has a wider vehicle coverage as supports the new CAN-Bus standard
7. Code definitions displayed on unit screen .no need to look them up!
8. No batteries required for operation. Power is supplied by the vehicle over the cable
9. Easy to use with friendly menu interface
10. Hot Keys for quick reading & erasing of codes
12. Detachable and replaceable 16-pin OBDII cable
13. Brand new from the factory
14. Built-in OBD II DTC lookup library
15. Reads Live 02 sensor test data
16. Displays Live PCM data stream
17. Displays monitor and I/M readiness status (emissions)
18. Performs a scan of modules present

Functions
1. Misfire
2. Fuel System
3. CCM (Comprehensive Components Monitor)
4. EGR System
5. O2 Sensor
6. Catalyst
7. Evaporative System
8. O2 Sensor Heater
9. Secondary Air
10. Heated Catalyst
11. A/C SystemPlus Many More! (Dependent on manufacturer support

Compatible Vehicles:
American / Australian / Asian / British / European / German / Korean / Japanese
Worldwide
All Other OBDII/CAN-Bus Compatible Vehicles from Year 1994 Onwards

Please Note! A Rough Guide to Compatibility:
Some Worldwide cars from 1994 onwards
USA cars from 1996
Some Australian / Asian / British / European / German / Korean / Japanese petrol cars from 1996
Most Australian / Asian / British / European / German / Korean / Japanese petrol cars from 2001
Most Australian / Asian / British / European / German / Korean / Japanese diesel cars from 2003

Also reads & clears certain manufacturer specific codes for:
GM auxhall/Opel/Ford rysler & Toyota!
Please do not ask if your vehicle is compatible, as I will not be able to help you.

Please carry out your own research or ask your local main dealer for info:
ISO 15765-4 - CAN-Bus
SAE J2480 - CAN-Bus
ISO 14230-4 - KWP 2000
ISO 9141
ISO 9141-2
SAE J1850 - PWM
SAE J1850 - VPW

Specifications
1. Large, 128 x 64 easy-to-read backlit LCD display with adjustable contrast
2. Operating Temperature: 0 to 50 (-32 to 122 F)

Supported Standards
ISO 15765-4 - CAN-Bus
SAE J2480 - CAN-Bus
ISO 14230-4 - KWP 2000
ISO 9141
ISO 9141-2
SAE J1850 - PWM
SAE J1850 - VPW

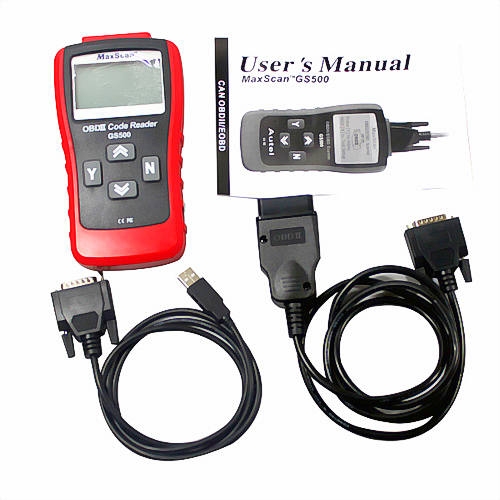

Package includes:
1 main unit
1 interface cable connect the car with the computer
1 user manual
1 Carry BagFAQ: Q: Can this item be updated?A: This item cannot be updated.Q: What language does this product have?A: This product only has English language, no other languages.
