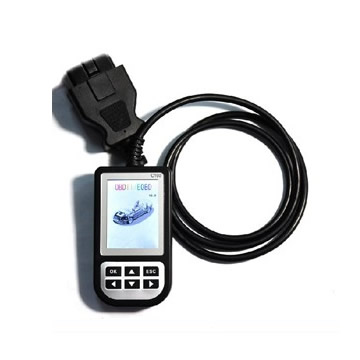

OBD II/EOBD Color Scanner Description
This scan tool makes your vehicle service experience much more pleasant!

OBD II/EOBD Color Scanner Specifications
     A) Display: Color , 240 x 320 pixel display with contrast adjustment
     B) Operation Temperature: 20-75 degree
     C) Stroge Temperature: 40-120 degree
     D) Power: 8V  18V
     E) Dimensions:
              Length       Width          Height
              100 mm      54 mm        18 mm
     F) Weight:
             Net Weight: 210 g
             Gross Weight: 320 g

OBD II/EOBD Color Scanner Features & Functions
Works on all 2001 and later OBDII compliant PETROL European vehicles
Works on all 2004 and later OBDII compliant DIESEL European vehicles
Works on all 1996 and later OBDII compliant US and Asian vehicles
Easily determines the cause of the "Check Engine Light ( MIL)"
Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3,
and U1) codes
Turns off Check Engine Light (MIL), clears codes and resets monitors
Displays DTC definitions on unit screen
Views freeze frame data
Identifies pending codes
Reads live PCM datastream
Graph displays live PCM datastream
Displays live O2 sensor test data
Performs modules present test
Retrieves vehicle information (VIN, CIN and CVN)
Supports CAN (Controller Area Network) and all other current OBDII
protocols
Color LCD, large 240 * 320 resolution
Software upgradeable via USB cable

Protocols covered:
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
ISO 91412 (5 baud init, 10.4 kbaud)
ISO 142304 KWP 2000 (5 baud init, 10.4 kbaud)
ISO 142304 KWP 2000 (fast init, 10.4 kbaud)
ISO 157654 CAN (11 bit ID, 500 kbaud)
ISO 157654 CAN (29 bit ID, 500 kbaud)
ISO 157654 CAN (11 bit ID, 250 kbaud)
ISO 157654 CAN (29 bit ID, 250 kbaud)
