MC68HC05 Motorola 705 Programmer

Description:

A parallel port interface (LPT1, LPT2) connects the programmer to any desktop PC running DOS or Windows systems.
The four jumpers located on the programmer board are intending for device type selection. Smart firmware controls all read/program operations so access to device can be establish even if device secured. Default settings permit to read and write Motorola MCU internal EEPROM without processor structure knowledge. The Device Menu displays all available functions to perform on the device (read, program, verify, program security, etc...). A full screen editor is provided to view or edit any address of the programming buffer in binary or ASCII formats.

Hardware Specifications:

On-board device programming.
Parallel (Communication Port) port interface works on (LPT1, LPT2 )

Supported chip list:

MC68HC705B16
MC68HC705B32
MC68HC705X16
MC68HC705X32
MC68HC05B68
MC68HC05B616
MC68HC05B632
MC68HC05X16
MC68HC05X32

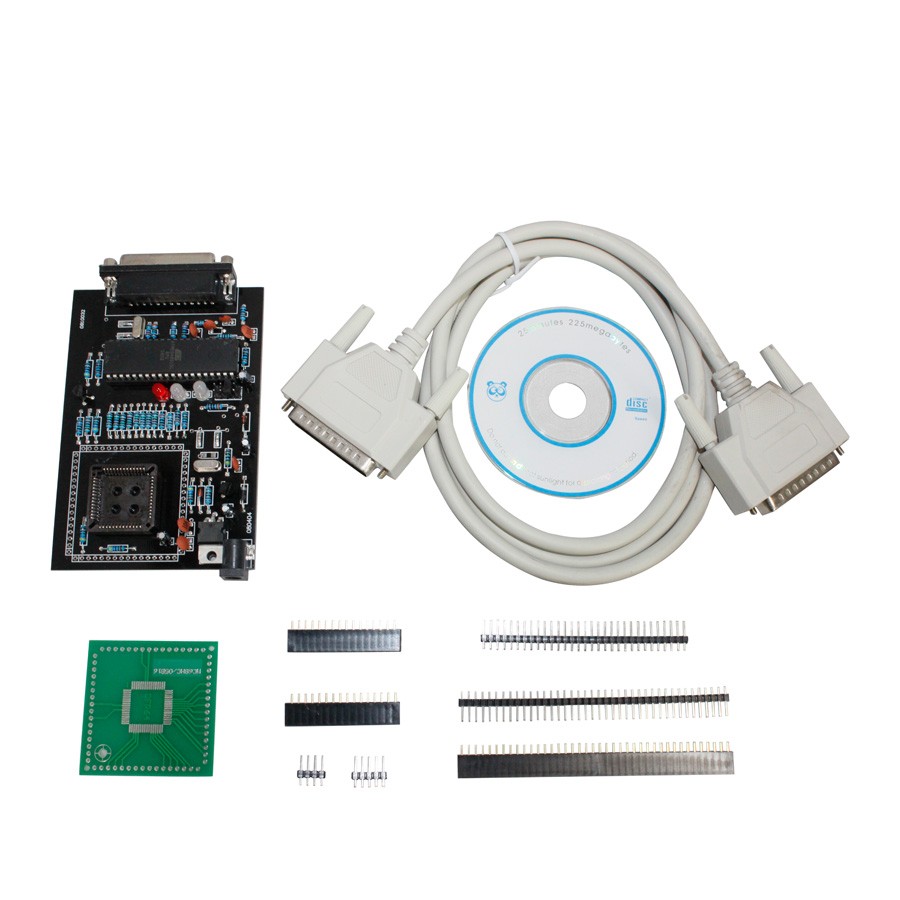

MC68HC05 Motorola 705 Programmer  Package list:

1pc x 705 programmer
1pc x MC68HC705B16 QFP-64
