CS602 Color Screen Codescan OBDII EOBD Scanner Description
CS602 Codescan OBDII EOBD Scanner is specially designed to work with all OBD II compliant vehicles, including Control Area Network (CAN). It is required by EPA that all 1996 and newer vehicles (cars and light trucks) sold in the United States must be OBD II compliant and this includes all American, Asian and European vehicles.

CS602 Codescan OBDII EOBD Scanner Feature & Functions:
1. Works on all 1996 and later OBDII compliant US, European and Asian vehicles;
2. Support all 10 OBDII test modes, including the latest SOA mode;
3. Support diagnostic protocol including SAE J1850 PWM/VPW, ISO 9141-2, ISO 14230-4(KWP), ISO15765-4(11bit and 29bit CAN)
4. Language including English, Spanish, French;
5. Uses 2.8' color LCD display;
6. Retrieves generic codes and manufacturer specific and resets monitors;
7. View freeze frame data;
8. View live PCM datastream;
9. Graphs live datastream;
10. Read live O2 sensors test data;
11. Read vehicle information(VIN, CID and CVN)
12. Record and playback history data;
13. Build in OBDII DTC lookup libray.

Vehicle coverage:
The CS602 is specially designed to work with all OBD II compliant vehicles, including Control Area Network (CAN). It is required by EPA that all 1996 and newer vehicles (cars and light trucks) sold in the United States must be OBD II compliant and this includes all American, Asian and European vehicles.
A small number of 1994 and 1995 model year gasoline vehicles are OBD II compliant. To verify if a 1994 or 1995 vehicle is OBD II compliant, check the Vehicle Emissions Control Information (VECI) Label, which is located under the hood or by the radiator of most vehicles. If the vehicle is OBD II compliant, the label will designate "OBD II Certified" Additionally, Government regulations mandate that all OBD II compliant vehicles must have a "common" sixteen-pin Data Link Connector (DLC).
For the vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.

CS602 Codescan OBDII EOBD Scanner Specification:
1) Screen: 2.8 inch TFT 262K true color, 320*240 QVGA LCD display
2) Input voltage range: 8~32V
3) Operating current: <100mA@
4) Power consumption: <1.2W (Typical)
5) Operating temperature: 32°F~122°F / 0
6) Storage tempetature: -4°F~158°F / -20°C ~70°C @
7) Outline dimension: 4.7' * 3.2' * 1.0' / 121*82*26 mm LWH

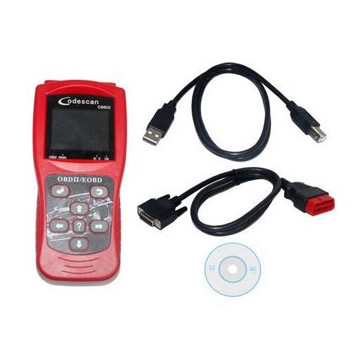

Package including:
1pc x CS602 Main Unit
1pc x USB Cable
1pc x OBD2 Cable
1pc x CD


Tags: CS602 Color Screen Codescan OBDII EOBD Scanner ,
