: Large Image :9S12 908 711 705 4 ln 1 Motorola Programmer

9S12 908 711 705 4 ln 1 Motorola Programmer

Descriptions of 9S12 908 711 705 4 ln 1 Motorola Programmer

9S12 908 711 705 4 ln 1 Motorola Programmer

Top 2 Reasons to Get the 9S12 908 711 705 4 in 1 Motorola Programador:

1.Language :English
2.Opreation System : Easy to use Windows 98/NT/2000/XP software

Notice :

On the D53J mask set (MC68HC05X32), DIV10 is forced in bootstrap mode.

So 20 MHz Crystal must be used with this device

1.Motorola 9S12 Programmer Features

In circuit / on board EEPROM/FLASH programming

Communication with PC via a serial port

Win 32 control software including editor

High Speed Programming

80QFP, 112QFP and 144QFP programming adapters

Motorola 9S12 Programmer Supported Devices

68HC912DC128A (3K91D)

MC68HC912DC128 (0K50E)

MC68HC912DG128 (5H55W)

MC68HC912DG128A (3K91D)

MC68HC912DG128A (0K50E)

MC68HC912D60A(2K38K)

MC68HC912B32 (4J54E)

MC68HC912B32 (9H91F)

MC68HC912D60 (0K75F)

MC68HC912D60 (0K13J)

MC68HC912D60 (4F73K)

MC9S12D64 (2L86D)

MC9S12DG128B (OL85D)

MC9S12DT128B (OL85D)

MC9S12A128B (OL85D)

MC9S12DB128B (OL85D)

MC9S12DT128B (1L85D)

MC9S12H128 (1K78X)

MC9S12 DT128B (3L40K)

MC9S12DG256C (2K79X)

MC9S12DT256C (2K79X)

MC9S12DP256C (2K79X)

MC9S12H256 (1K78X)

MC9S12DP512 (1L00M)

For Motorola 9S12 Programmer Package Included

one 9S12 programmer

one HC912 QFP80 adapter

one MC9S12 112QFP adapter

one MC9S12 80QFP adaper

one HC912 QFP112 adapter

one MC9S12H256 144QFP adapter

Additional items youll need to use this Motorola 9S12 Programmer

Host: A 32 Bit x86 based or Pentium PC with a free LPT communication port.

Power supply: An 12 Volt / 500 mA power adapter.

2.Motorola 908 Programmer/ETL

1)In-Circuit EEPROM programming (MON08 Rev1 adaptor must be used).

2)Ultra high-speed On-Board FLASH/EEPROM programming.

302x2 color LEDs indicates mode of operation, power supply status

Supported Devices

MC68HC908AZ60 (2J74Y)

MC68HC908AZ60 (4J74Y)

MC68HC908AZ60A (3K85K)

MC68HC908AS60 (3J74Y)

MC68HC908AS60A (1L87J)

MC68HC908AB32 (3K56G)

MC68HC08AZ60 (1J35D)

MC68HC08AZ32 (0J66D)

MC68HC08AZ32 (1H56A)

MC68HC08AS20 (0H94K)

MC68HC08AZ32A (1L52H)

MC68HC08AB16A (0L72A)

MC68HC05H12 (0H57A)

Additional items you'll need to use this tool

1.Host: A 32 Bit x86 based or Pentium PC with a free LPT communication port.

2.Power supply: An 12 Volt / 500 mA power adapter.

3. For Motorola 711 Programmer Features

Communication with PC via a serial port

Easy to use Windows 98/ME/XP software

In-circuit/On-board EEPROM programming

High Speed EEPROM Programming

CONFIG Register Programming

Pin tester in both operation Modes

TargetMCU baud rate auto detection

2 color LED indicatesMode of operation, power supply status

8 adapers included

For Motorola 711 Programmer Supported Devices

MC68HC11A8 (AB95T)

MC68HC11A8 (C96N)

MC68HC11A8 (D26E)

MC68HC11E20(3E22B)

MC68HC11E9 (1B60R)

MC68HC11E9 (D82R)

MC68HC11E9 (E22B)

MC68HC11E9 (E28B)

MC68HC11EA9 (2D47J)

MC68HC11F1 (2F37E)

MC68HC11F1 (E87J)

MC68HC11K1 (2D58N)

MC68HC11K4 (1E62H)

MC68HC11K4 (OE75J)

MC68HC11KA4 (1E59B)

MC68HC11KS2 (0H95B)

MC68HC11KS4 (0E57S)

MC68HC11KS4 (0F60M)

MC68HC11P2 (2E74J)

MC68HC711E20 (1H19S)

MC68HC711E9 (4K81H)

MC68HC711E9 (5C47M)

MC68HC711EA9(0D46J)

MC68HC711K4 (K59D)

MC68HC711PH8(0H30R)

MC68S711E9 (5C47M)

XC68HC711KS8 (1H96P)

XC68HC711P2 (1E53M)

For Motorola 711 Programmer Package Included

one 711 programmer

one 11EA9 PLCC-52 adapter

one 11E PLCC-52 adapter

one 11E QFP-64 adapter

one 11K PLCC-84 adapter

one 11K QFP-80 adapter

one 11KA/KS PLCC-68 adapter

one 11F PLCC-68 adapter

one 11PH PLCC-84 adapter

Additional items youll need to use Motorola 711 Programmer

Host: A 32 Bit x86 based or Pentium PC with a free LPT communication port.

Power supply: An 12 Volt / 500MA power adapter.

4.for Motorola 705 Programmer Features

Easy to use DOS, Windows 95/98/NT/2000/XP software

Onboard processor

Device selection by 4 jumpers

2 color LEDs indicates mode of operation, security condition (check option available without PC)

LPT port self-check function on a board

52PLCC PGA socket on a board and additional adaptor for 64QFP device in complete

For Motorola 705 Programmer Supported Devices

MC68HC705B16

MC68HC705B32

MC68HC705X16

MC68HC705X32

MC68HC05B68

MC68HC05B616

MC68HC05B632

MC68HC05X16

MC68HC05X32

For Motorola 705 Programmer Package Included

one 705 programmer

one MC68HC705B16 QFP-64

Additional items youll need to use this tool

Host: A 32 Bit x86 based or Pentium PC with a free LPT communication port.

Power supply: An 12 Volt / 500MA power adapter.

Note: You may purchase a 12V power adapter in this site if you like.

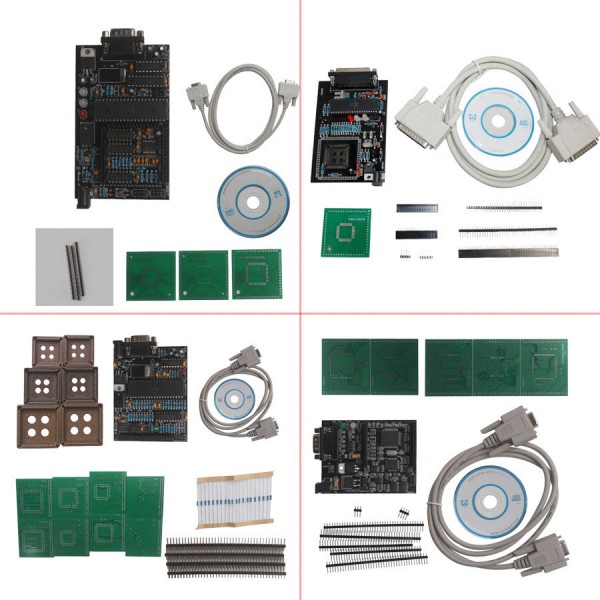

package Including:

For Mortorola 9s12 programmer + adapters + software x 1

For Mortorola 908 programmer + adapters + software x 1

For Mortorola 711 programmer + adapters + software x 1

For Mortorola 705 programmer + adapters + software x 1
