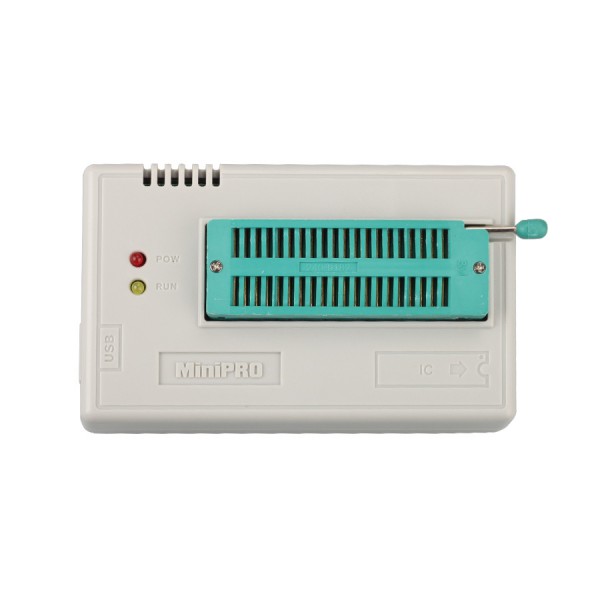

Original V6.5 Super Mini Pro TL866A Universal EEPROM Programmer

Super Mini Pro TL866A EEPROM Programmer is the newest model of True USB Universal Programmer series from China.

Descriptions of Original V6.5 Super Mini Pro TL866A Universal EEPROM Programmer

Super Mini Pro TL866A EEPROM Programmer
1.is the newest model of True USB Universal Programmer series from China.
2.Support Windows 2000,XP,2003,2008,Vista & Win7(32/64)
3.Supports thousands of most popular application devices (12,000+)

Super Mini Pro TL866A EEPROM Programmer

Latest Version: V6.5

V6.50 TL866cs Version Support:

ADD: Support 25 Flash OTP program
Support 1.8V 25 serials Flash (Need special Adapter DIY)
Ic Support up to 14000+, more detail see IC supported List.

Mini Pro TL866A Description:

1. Multi-languages: English, Chinese
2. Support Windows 2000,XP,2003,2008,Vista & Win7(32/64)
3.Neat robust enclosure; 40pin ZIF socket, fully automatic; Fast mode SPI support

4. USB interface for both data transfer and power supply

5. High speed/fastest, user-friendly, simply-to-use

6. Software update regularly; free life-time software upgrade/download

7. Supports thousands of most popular application devices (12,000+)

8. Ideally suits the portable/convenient applications that includes: car automotive field ECU chip tuning, airbag reset,mileage, satellite devices, BIOS refreshing, xBox, Wii gaming machines EPROM

duplicate, PIC/MCU development, newer laptop technology and newer desktop PC etc.

9. It has outstanding performance which supports the devices that other similar products are not capable of supporting: such as 25LF SPI series, PSOP44,TSOP48, 25VF SPI series, PLCC84,SST39VF3201, TE28F102, 27C1024, 27C1028,HD6475,29F800, 29LV800.

TL866A Common Chip ROM Programming Time: ( Unit: seconds)
Chip Categary	Chip Type	Capacity(bits)	Erase(S)	Read/Check(S)	Write(S)	Total(S)	Remark
27Cxxx	27C512	512K	/	2S	20.8S	22.8	28PIN
	27C010	1M	/	4S	34.2S	38.2	32PIN
	27C1024 16Bit	1M	/	4.1S	19.6S	23.7	40PIN
Electronic Erase 27Cxxx	W27E257	256K	0.1	1	10.4	11.5	28PIN
	SST27SF512	512K	0.1	1.4	20	21.5	28PIN
	W27C010	1M	0.2	2.3	33.4	35.9	32PIN
FLASH EEROM	N28F020	2M	0.6	3.1	10.7	14.4	32PIN
	AT29C020	2M	0.2	3.1	10.9	14.2
	W29C020	2M	0.3	3.1	11	14.3
	AM29F040	4M	7.9	9.2	26	43.1
	M29F002	2M	2.5	4.6	19.5	25.6
	SST39SF020	2M	0.4	3.6	15.6	19.6
	AT49F002	2M	1.2	3.6	16.4	11.2
	W39V040AP	4M	0.1	9.2	27	36
	M50FW040	4M	7	9.2	25	41.2
	INTEL82802AB	4M	4	9.2	25	38
	AM29F200	2M	3.7	2	8.6	14.3	48PIN
	AM29LV160DB	16M	27	16	50	83
	TE28F320C3B	32	29	32	79	130
	AT48BV8192A	8	5	8	28	41
Serial EEPROM	24C02	2048	/	0.1	0.3	0.4	8-16PIN
	AT24C256	256	/	4.2	8.2	12.4
	AT24C512	512	/	8.4	13.5	21.9
	25080	8192	/	0.01	0.1	0.1
	25320	32	/	0.1	0.5	0.6
	25LC1024	1M	0.2	1.5	3.9	4.6
	EN25T80	8M	8.4	12	18	38.4
	MX25L8005	8M	5.8	12	17	34.8
	MAX25L6405	64M	4.2	98	166	302
	95320	32K	/	0.1	0.5	0.6
	35080	8192	/	0.1	0.1	0.2
	93C46	1024				0.1
	93CS56	2048	0.1	0.1	0.4	0.6
	93C66	4096	0.1	0.1	1.2	1.4
	93C86	M	0.1	0.1	2.4	2.6

Package Including:

1set x Super Mini Pro TL866A Eprom Programmer

Customers Feedback:

1. If You are planning to work frequently on those ecu I recommend to buy TL866 Minipro programmer. With tsop44 adapter, this tool is very stable for reading F200 flash fitted on Sirius32

2. I also have TL-866 programmer and that one is working good too.

3. Then beter to buy Wellon or other good programmer with adapter. At least Wellon tells you which pins does not have good connections.
