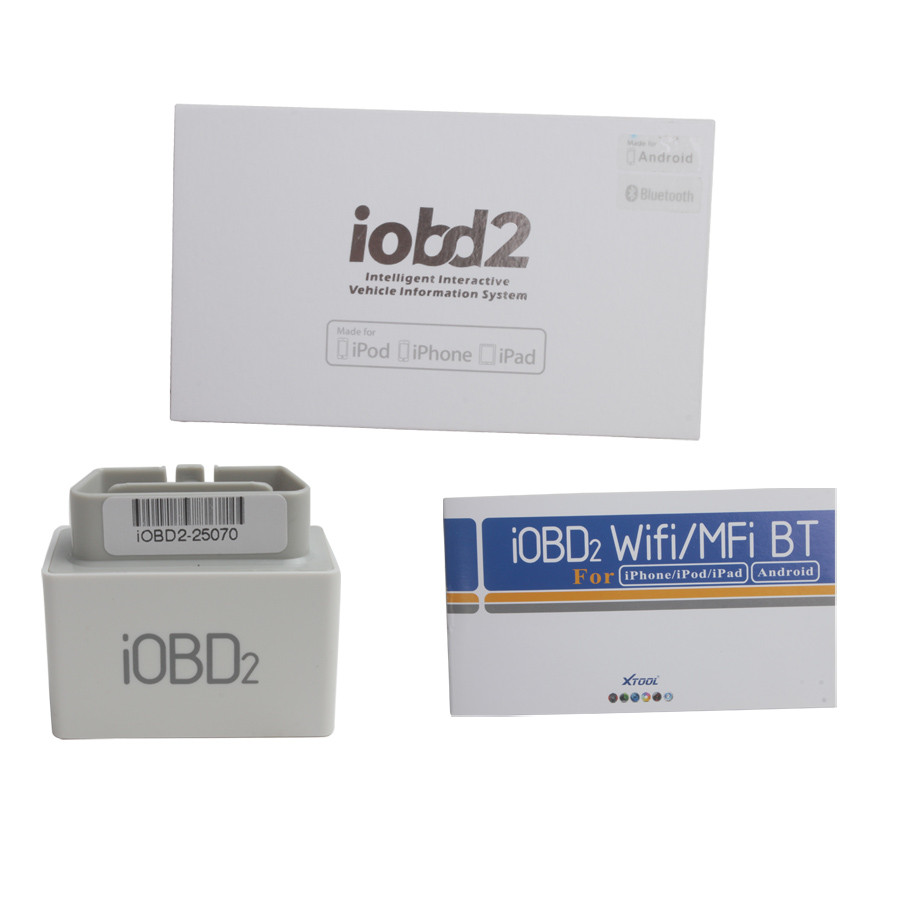

IOBD2 is an app for your car. It turns your Phone/Pad into an advanced display for your engine data.

Please verify that your vehicle is OBD-II/EOBD compliant before purchasing!

Get the benefit of multiple gauges without the overwhelming clutter and the expense! (Note: Not all OBD-II compliant vehicles have support for all parameters)

1. ISO15765-4 (CAN)

2. ISO14230-4 (KWP2000)

3. ISO9141-2

4.J1850 VPW

5.J1850 PWM

iOBD2 works with most 1996 and & newer model year cars and light trucks (OBDII & CAN)-domestic and imported.

IOBD2 APP can be searched and downloaded at the Apple store and Google Play Store.

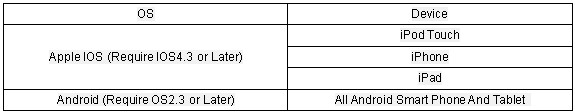

iOBD2 can be connected with all devices based on Apple iOS and Android OS with Bluetooth.

1). Engine speed

2). Corrected vehicle speed

3). Open/closed loop

4). Boost/vacuum combo gauge

5). Acceleration (and braking)

1). Inst. fuel economy

2). Avg fuel economy

1). Timing (spark advance)

2). Engine coolant temp.

3). Intake air temp.

4). Ambient air temp.

5). Manifold absolute pressure

6). Mass air flow

7). Fuel trims, short and long term

8). Percent engine load

9). Catalyst temp.

10). Fuel pressure

11). Lambda gauge

12). Air/fuel ratio

Read DTC: Read the current DTC that engine has stored, and DTC info.

Clear DTC: Clear all the current DTC.

Display DTC Definition: Show all the definition and explanation of DTCs.

Guide Maintenance:Guide how to maintenance the problems of car according to the trouble codes.

Live data: Read all the running parameters that related to the ECU.

Freeze frame data: OBD system will record the system running parameters related to the malfunction the moment when it occurred at the same time when it set the DTC. And this group of data is called freeze frame data.

Readiness test: Readiness reflects the status that all the valid diagnostic functions. The diagnostic functions are referring to the important monitoring functions in OBD system, e.g. Oxygen sensor monitoring, Oxygen sensor heater monitoring, and EGR system monitoring, etc. These diagnostic functions are closely related to the engine emission control.

Read vehicle info: Read vehicle info such as Vehicle Identification Number(VIN), Calibration IDs(CALID) and Calibration Verification Number (CVN).

Oxygen Sensor test: This service is to allow access to the on-board oxygen sensor monitoring test results. The same information may be obtained by the use of [Mode 6 test].

Mode 6 test: This service is to allow access to the results for on-board diagnostic monitoring tests of specific components/systems that are not continuously monitored. Examples are catalyst monitoring and the evaporative system monitoring.

EVAP System Test: The purpose of this service is to enable the external test equipment to control the operation of an on-board system, test or component.
